Weidmuller 1873310150 SAIL-M12GM12G-PB-1.5D

MPN: 1873310150
PPN: WDM-1873310150

$68.42

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

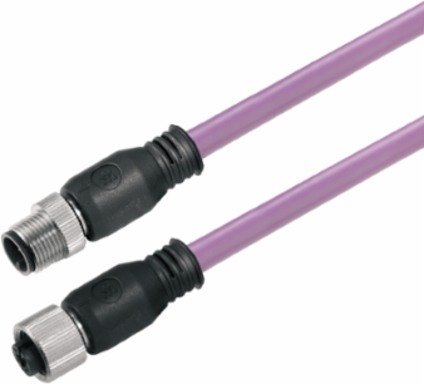

Bus line, Connecting line, M12 / M12, Number of poles: 2, 1.5 m, pin, straight - socket, straight, Shielded: Yes, LED: No, Sheath material: PUR, Halogen: No

Documentation & Downloads

Specifications

Approvals

Approvals	CULUS
UL File Number Search	E307231

ROHS	Conform

Dimensions And Weights

Net weight	143 g

Standards

Certificate no. (cULus)	E307231

General Technical Data

Version	pin, straight - socket, straight
Housing main material	PUR

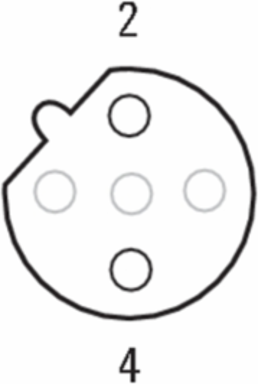

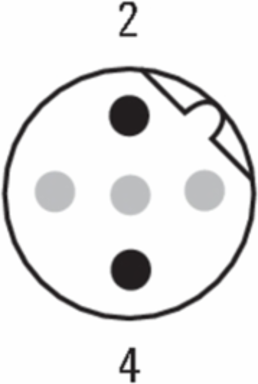

Coding	B
Contact surface	Gold-plated
Rated voltage	250 V
Insulation strength	108 Ω
Tightening torque	M12: 0.8 - 1.2 Nm
Pollution severity	3

Connection thread	M12 / M12
Threaded ring material	Brass, nickel-plated
Protection degree	IP67
LED	No
Rated current	4 A
Temperature range of housing	-25…+80 °C
Plugging cycles	≥ 100
jumpered	No

Technical Specifications For Cable

Number of poles	2
Core cross-section	24 AWG
Cable length	1.5 m
Insulation	TPE
Sheath material	PUR
Halogen	No
Temperature range, stationary	-40...70 °C
Suitable for cable carriers	Yes
Bending radius, min., moving	12 x cable diameter
Speed	3 m/s
Resistant to welding beads	No
Irradiation crosslinked	No

Wire cross section	PUR 0.25 mm² / PVC 0.34 mm²

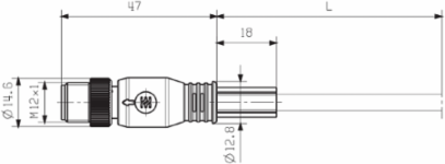

Outside diameter	7.8 ± 0.2 mm
Shielded	Yes
Colour coding	red, green
Sheathing colour	violet
Temperature range, moving	-20...60 °C
Outer cladding in accordance with UL AWM style	20236 (80 °C / 30 V)
Bending radius, min., stationary	7.5 x cable diameter
Acceleration	5 m/s²
Bending cycles	2 Mio
Hybrid cable	No
Configurable cable length	No
