Weidmuller 1296801000 SAIL-M12GM12SG-4S10UIE

MPN: 1296801000
PPN: WDM-1296801000

$87.34

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

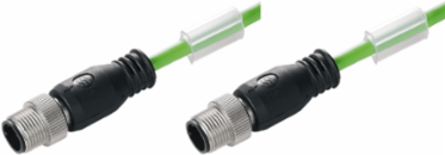

Bus line, Connecting line, M12 / M12, Number of poles: 4, 10 m, Male, straight - male, straight, Shielded: Yes, LED: No, Sheath material: PUR, Halogen: No

Documentation & Downloads

Specifications

Approvals

Approvals	EAC

ROHS	Conform

Dimensions And Weights

Net weight	323 g

General Technical Data

Version	Male, straight - male, straight
Housing main material	PUR

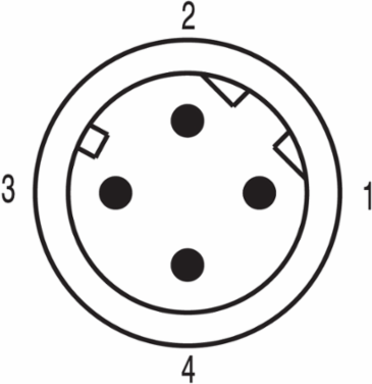

Coding	D
Contact surface	Gold-plated
Rated voltage	250 V
Insulation strength	108 Ω
Tightening torque	M12: 0.8 - 1.2 Nm
Pollution severity	3

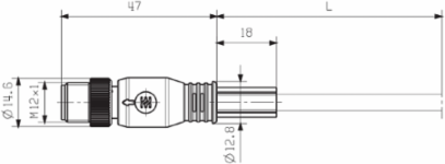

Connection thread	M12 / M12
Threaded ring material	Brass, nickel-plated
Protection degree	IP67
LED	No
Rated current	4 A
Temperature range of housing	-25…+80 °C
Plugging cycles	≥ 100
jumpered	No

Technical Specifications For Cable

Number of poles	4
Outside diameter	4.8 ± 0.3 mm
Shielded	Yes

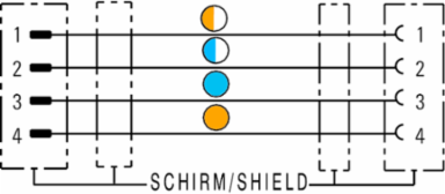

Colour coding	blue, orange, white / blue, white / orange
Sheathing colour	green
Temperature range, stationary	-40...80 °C
Suitable for cable carriers	Yes
Bending radius, min., moving	7.5 x cable diameter
Speed	180 m/min
Resistant to welding beads	No
Irradiation crosslinked	No

Core cross-section	0.15 mm²
Cable length	10 m
Insulation	PP
Sheath material	PUR
Halogen	No
Outer cladding in accordance with UL AWM style	20963 (80 °C / 30 V)
Bending radius, min., stationary	4 x cable diameter
Acceleration	5 m/s²
Bending cycles	5 Mio
Hybrid cable	No
Configurable cable length	No
