Weidmuller 9457390880 SAIL-M12GM12W-3-8.8U
- MPN: 9457390880
- PPN: WDM-9457390880
CAD
$25.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

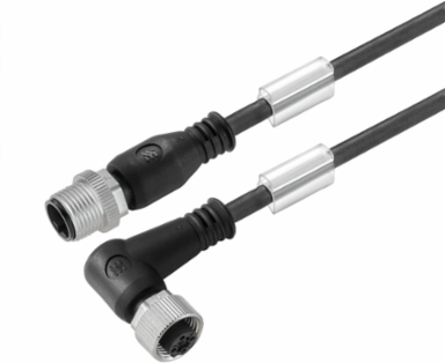

Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 3, 8.8 m, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Specifications
Approvals
- ROHS
- Conform
Dimensions And Weights
- Net weight
- 400 g
General Technical Data
- AF size
- 12 mm
- Housing main material
- PUR
- Protection degree
- IP65, IP66, IP67, IP68, when screwed in
- LED
- No
- Rated current
- 4 A
- Temperature range of housing
- -25…+80 °C
- Pollution severity
- 3

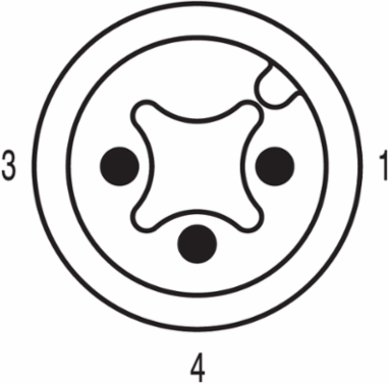

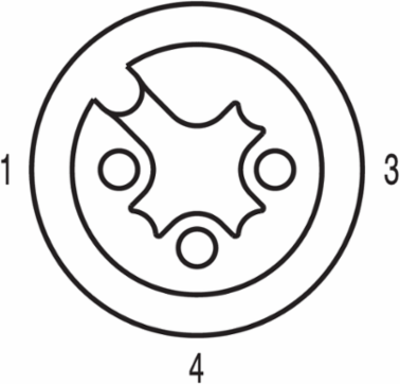

Connection threadM12 / M12
Threaded ring materialDiecast zinc
Contact surfaceGold-plated
Rated voltage250 V
Insulation strength108 Ω
Plugging cycles≥ 100
Technical Specifications For Cable
- Number of poles
- 3
- Outside diameter
- 4.3 ± 0.2 mm
- Shielded
- No
- Colour coding
- brown, blue, black
- Sheathing colour
- black
- Temperature range, moving
- -25...80 °C
- Core in accordance with UL AWM style
- 10493 (80 °C / 300 V)
- Suitable for cable carriers
- Yes
- Bending radius, min., stationary
- 5 x cable diameter
- Acceleration
- 5 m/s²
- Bending cycles
- 2 Mio
- Configurable cable length
- No
- LABS-free
- Yes
- Resistance to spread of flame
- In accordance with UL1581 UL/ CUL FT1, in accordance with IEC 60332-1-2, in accordance with IEC 60332-1-3, in accordance with IEC 60332-2-2
Core cross-section0.34 mm²
Cable length8.8 m
InsulationPP
Sheath materialPUR
HalogenNo
Temperature range, stationary-40...80 °C
Outer cladding in accordance with UL AWM style20233/21198 (80 °C / 300 V)
Torsion resistance360 °/m
Bending radius, min., moving10 x cable diameter
Speed5 m/s
Resistant to welding beadsNo
Hydrolysis and microbe resistantYes
Resistance to oilsin accordance with IEC 60811:404
Classifications
- ETIM 6.0
- EC001855
- eClass 9.0
- 27-06-03-11
- eClass 10.0
- 27-06-03-11
ETIM 7.0EC001855
eClass 9.127-06-03-11
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
