Weidmuller 1020930150 SAIL-M12GM12W-4-3LW1.5T
- MPN: 1020930150
- PPN: WDM-1020930150
CAD
$23.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

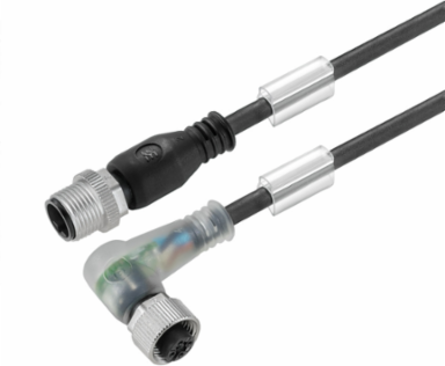

Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 4, 1.5 m, pin, straight - socket, 90°, Shielded: No, LED: Yes, Sheath material: PUR, Halogen: No
Documentation & Downloads
Specifications
Approvals
- Approvals
- UL
- UL File Number Search
- E307231
ROHSConform
Dimensions And Weights
- Net weight
- 75 g
Standards
- Connector standard
- IEC 61076-2-101
Certificate No. (UL)E307231
General Technical Data
- AF size
- 12 mm
- Connection thread
- M12 / M12
- Threaded ring material
- Diecast zinc
- Protection degree
- IP65, IP66, IP67, IP68, when screwed in
- LED
- Yes
- Rated current
- 4 A
- Temperature range of housing
- -25…+80 °C
- Plugging cycles
- ≥ 100
- jumpered
- No
Versionpin, straight - socket, 90°
Housing main materialPUR
CodingA
Contact surfaceGold-plated
Rated voltage24 V
Insulation strength108 Ω
Tightening torqueM12: 0.8 - 1.2 Nm
Pollution severity3
Technical Specifications For Cable

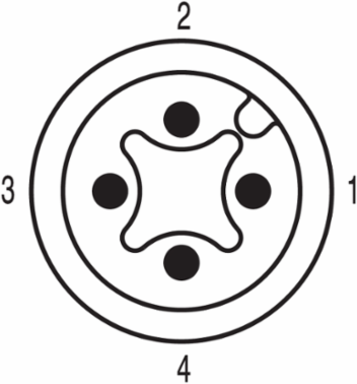

- Number of poles
- 4
- Outside diameter
- 4.9 ± 0.2 mm
- Shielded
- No

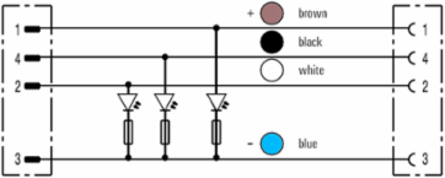

- Colour coding
- brown, white, blue, black
- Sheathing colour
- black
- Temperature range, moving
- -30...105 °C
- Outer cladding in accordance with UL AWM style
- 20233 (80 °C / 300 V)
- Torsion resistance
- 360 °/m
- Bending radius, min., moving
- 7.5 x cable diameter
- Speed
- 200 m/min
- Resistant to welding beads
- Yes
Core cross-section0.34 mm²
Cable length1.5 m
InsulationPP
Sheath materialPUR
HalogenNo
Temperature range, stationary-40...105 °C
Suitable for cable carriersYes
Bending radius, min., stationary4 x cable diameter
Acceleration5 m/s²
Bending cycles10 Mio
Configurable cable lengthNo
Classifications
- ETIM 6.0
- EC001855
- eClass 9.0
- 27-06-03-11
- eClass 10.0
- 27-06-03-11
ETIM 7.0EC001855
eClass 9.127-06-03-11
UNSPSC30-21-18-01
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature, max.
- 80 °C
Operating temperature, min.-25 °C
