Weidmuller 1963920150 SAIL-M12GM12W-5-3LW1.5TP
- MPN: 1963920150
- PPN: WDM-1963920150
CAD
$25.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

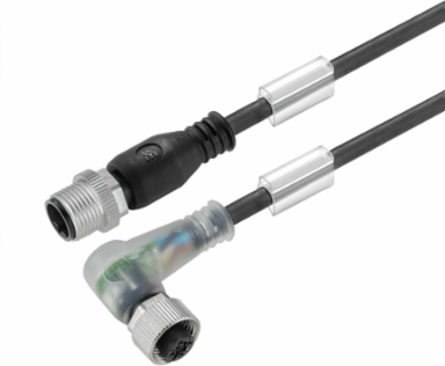

Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 5, 1.5 m, pin, straight - socket, 90°, Shielded: No, LED: Yes, Sheath material: PUR, Halogen: No
Documentation & Downloads
Specifications
Approvals
- Approvals
- EAC
ROHSConform
Dimensions And Weights
- Net weight
- 79 g
Standards
- Connector standard
- IEC 61076-2-101
General Technical Data
- Version
- pin, straight - socket, 90°
- Housing main material
- PUR
- Coding
- A
- Contact surface
- Gold-plated
- Rated voltage
- 24 V
- Insulation strength
- 108 Ω
- Tightening torque
- M12: 0.8 - 1.2 Nm
- Pollution severity
- 3
Connection threadM12 / M12
Threaded ring materialDiecast zinc
Protection degreeIP65, IP66, IP67, IP68, when screwed in
LEDYes
Rated current4 A
Temperature range of housing-25…+80 °C
Plugging cycles≥ 100
jumperedNo
Technical Specifications For Cable

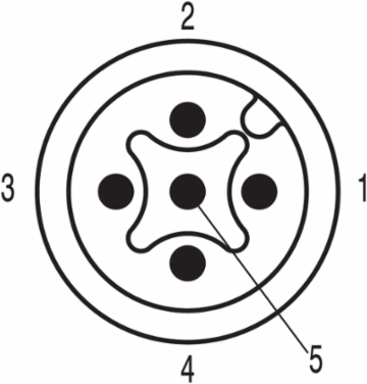

- Number of poles
- 5
- Outside diameter
- 5.1 ± 0.2 mm
- Shielded
- No

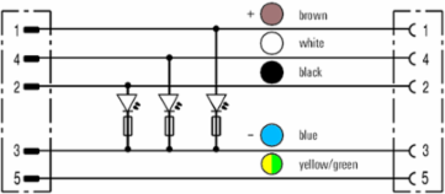

- Colour coding
- brown, white, blue, black, Green/yellow
- Sheathing colour
- black
- Temperature range, moving
- -30...105 °C
- Outer cladding in accordance with UL AWM style
- 20233 (80 °C / 300 V)
- Torsion resistance
- 360 °/m
- Bending radius, min., moving
- 7.5 x cable diameter
- Speed
- 200 m/min
- Resistant to welding beads
- Yes
Core cross-section0.34 mm²
Cable length1.5 m
InsulationPP
Sheath materialPUR
HalogenNo
Temperature range, stationary-40...105 °C
Suitable for cable carriersYes
Bending radius, min., stationary4 x cable diameter
Acceleration5 m/s²
Bending cycles10 Mio
Configurable cable lengthNo
Classifications
- ETIM 6.0
- EC001855
- eClass 9.0
- 27-06-03-11
- eClass 10.0
- 27-06-03-11
ETIM 7.0EC001855
eClass 9.127-06-03-11
UNSPSC26-12-16-13
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature, max.
- 80 °C
Operating temperature, min.-25 °C
