Weidmuller 1279470150 SAIL-M12GM12W-8S1.5U

MPN: 1279470150
PPN: WDM-1279470150

$66.78

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

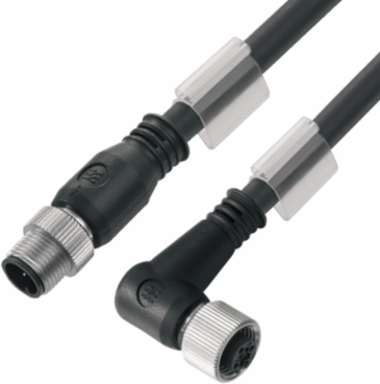

Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 8, 1.5 m, pin, straight - socket, 90°, Shielded: Yes, LED: No, Sheath material: PUR, Halogen: No

Documentation & Downloads

Specifications

Approvals

Approvals	CULUS
UL File Number Search	E307231

ROHS	Conform

Dimensions And Weights

Net weight	119 g

Standards

Connector standard	IEC 61076-2-101

Certificate no. (cULus)	E307231

General Technical Data

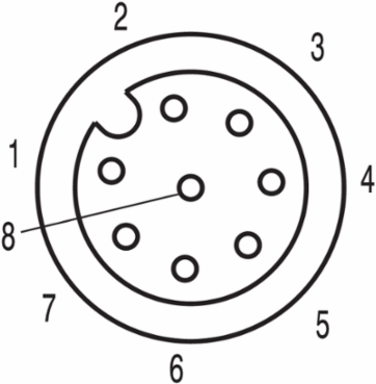

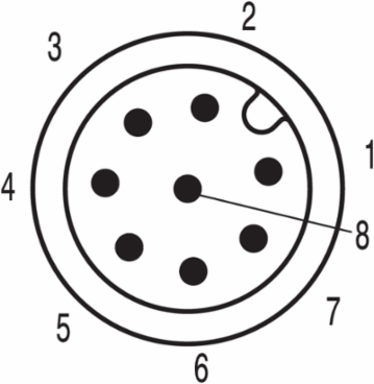

Version	pin, straight - socket, 90°
Housing main material	PUR
Coding	A
Contact surface	Gold-plated
Rated voltage	30 V
Insulation strength	108 Ω
Tightening torque	M12: 0.8 - 1.2 Nm
Pollution severity	3

Connection thread	M12 / M12
Threaded ring material	Brass, nickel-plated
Protection degree	IP67, when screwed in
LED	No
Rated current	2 A
Temperature range of housing	-25…+80 °C
Plugging cycles	≥ 100
jumpered	No

Technical Specifications For Cable

Number of poles	8
Outside diameter	6.3 ± 0.2 mm
Shielded	Yes

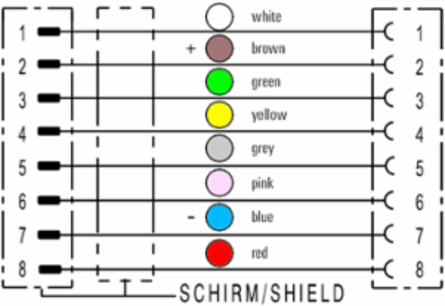

Colour coding	blue, red, white, brown, green, yellow, grey, pink
Sheathing colour	black
Temperature range, moving	-25...80 °C
Outer cladding in accordance with UL AWM style	20549 (80 °C / 300 V)
Torsion resistance	360 °/m
Bending radius, min., moving	12 x cable diameter
Speed	100 m/min
Resistant to welding beads	No

Core cross-section	0.25 mm²
Cable length	1.5 m
Insulation	PP
Sheath material	PUR
Halogen	No
Temperature range, stationary	-40...80 °C
Suitable for cable carriers	Yes
Bending radius, min., stationary	5 x cable diameter
Acceleration	5 m/s²
Bending cycles	1 mill.
Configurable cable length	No
