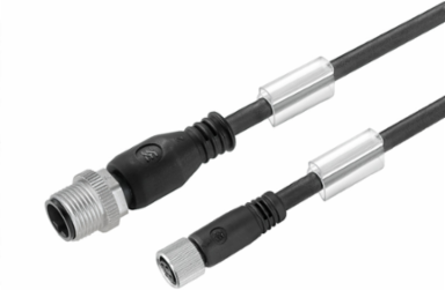

Weidmuller 9457770460 SAIL-M12GM8G-3-4.6U
- MPN: 9457770460
- PPN: WDM-9457770460
CAD
$19.21
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Sensor/actuator line, Connecting line, Number of poles : 3, 4.6 m, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Specifications
Approvals
- ROHS
- Conform
Dimensions And Weights
- Net weight
- 115 g
General Technical Data
- AF size
- 12 mm
- Threaded ring material
- Diecast zinc
- LED
- No
- Rated current
- 4 A
- Temperature range of housing
- -25…+80 °C
- Pollution severity
- 3
Housing main materialPUR
Contact surfaceGold-plated
Rated voltage60 V
Insulation strength108 Ω
Plugging cycles≥ 100
Technical Specifications For Cable

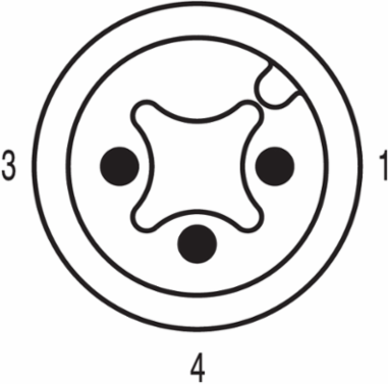

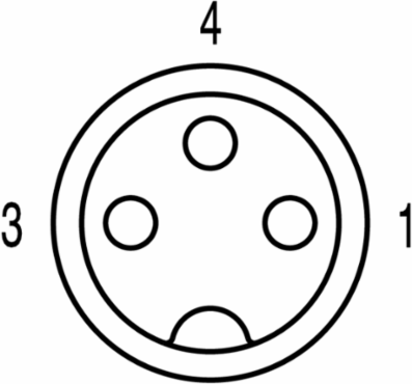

- Number of poles
- 3
- Outside diameter
- 4.1 ± 0.2 mm
- Shielded
- No
- Colour coding
- brown, blue, black
- Sheathing colour
- black
- Temperature range, moving
- -25...80 °C
- Core in accordance with UL AWM style
- 10493 (80 °C / 300 V)
- Suitable for cable carriers
- Yes
- Bending radius, min., stationary
- 5 x cable diameter
- Acceleration
- 5 m/s²
- Bending cycles
- 2 Mio
- Configurable cable length
- No
- Resistance to oils
- in accordance with IEC 60811:404
Core cross-section0.25 mm²
Cable length4.6 m
InsulationPP
Sheath materialPUR
HalogenNo
Temperature range, stationary-40...80 °C
Outer cladding in accordance with UL AWM style20233/21198 (80 °C / 300 V)
Torsion resistance360 °/m
Bending radius, min., moving10 x cable diameter
Speed5 m/s
Resistant to welding beadsNo
Hydrolysis and microbe resistantYes
Resistance to spread of flameIn accordance with UL1581 UL/ CUL FT1, in accordance with IEC 60332-1-2, in accordance with IEC 60332-1-3, in accordance with IEC 60332-2-2
Classifications
- ETIM 6.0
- EC001855
- eClass 9.0
- 27-06-03-11
- eClass 10.0
- 27-06-03-11
ETIM 7.0EC001855
eClass 9.127-06-03-11
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
