Weidmuller 9457450500 SAIL-M8BG-3-5.0U
- MPN: 9457450500
- PPN: WDM-9457450500
CAD
$12.51
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

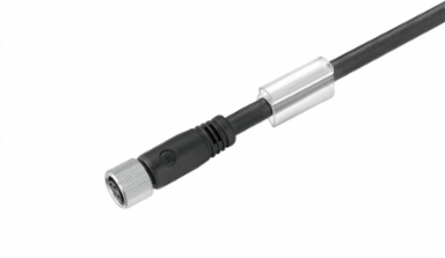

Sensor/actuator line, One end without connector, M8, Number of poles : 3, 5 m, Female socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Documentation & Downloads
Specifications
Approvals
| Approvals | CULUS |
|---|---|
| UL File Number Search | E307231 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 108 g |
|---|
Standards
| Connector standard | IEC 61076-2-104 |
|---|
| Certificate no. (cULus) | E307231 |
|---|
General Technical Data
| AF size | 12 mm |
|---|---|
| Connection thread | M8 |
| Threaded ring material | Brass, nickel-plated |
| Protection degree | IP65, IP66, IP67, IP68, when screwed in |
| LED | No |
| Rated current | 4 A |
| Temperature range of housing | -25…+80 °C |
| Plugging cycles | ≥ 100 |
| jumpered | No |
| Version | Female socket, straight |
|---|---|
| Housing main material | PUR |
| Coding | none |
| Contact surface | Gold-plated |
| Rated voltage | 60 V |
| Insulation strength | 108 Ω |
| Tightening torque | M8: 0.5 - 0.6 Nm |
| Pollution severity | 3 |
Technical Specifications For Cable
| Number of poles | 3 |
|---|---|
| Outside diameter | 4.1 ± 0.2 mm |
| Shielded | No |
| Colour coding | brown, blue, black |
| Sheathing colour | black |
| Temperature range, moving | -25...80 °C |
| Core in accordance with UL AWM style | 10493 (80 °C / 300 V) |
| Suitable for cable carriers | Yes |
| Bending radius, min., stationary | 5 x cable diameter |
| Acceleration | 5 m/s² |
| Bending cycles | 2 Mio |
| Configurable cable length | No |
| Resistance to oils | in accordance with IEC 60811:404 |
| Core cross-section | 0.25 mm² |
|---|---|
| Cable length | 5 m |
| Insulation | PP |
| Sheath material | PUR |
| Halogen | No |
| Temperature range, stationary | -40...80 °C |
| Outer cladding in accordance with UL AWM style | 20233/21198 (80 °C / 300 V) |
| Torsion resistance | 360 °/m |
| Bending radius, min., moving | 10 x cable diameter |
| Speed | 5 m/s |
| Resistant to welding beads | No |
| Hydrolysis and microbe resistant | Yes |
| Resistance to spread of flame | In accordance with UL1581 UL/ CUL FT1, in accordance with IEC 60332-1-2, in accordance with IEC 60332-1-3, in accordance with IEC 60332-2-2 |
Classifications
| ETIM 6.0 | EC001855 |
|---|---|
| eClass 9.0 | 27-06-03-11 |
| eClass 10.0 | 27-06-03-11 |
| ETIM 7.0 | EC001855 |
|---|---|
| eClass 9.1 | 27-06-03-11 |
| UNSPSC | 26-12-16-13 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Operating temperature, max. | 80 °C |
|---|
| Operating temperature, min. | -25 °C |
|---|
