Weidmuller 1906633000 SAIL-M8BW-4S30U

MPN: 1906633000
PPN: WDM-1906633000

$103.00

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

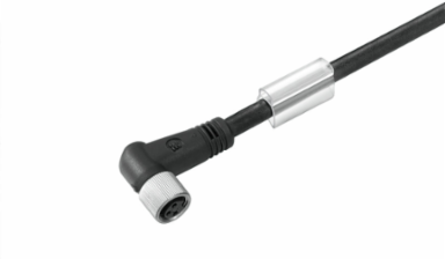

Sensor/actuator line, One end without connector, M8, Number of poles : 4, 30 m, Socket, angled, Shielded: Yes, LED: No, Sheath material: PUR, Halogen: No

Documentation & Downloads

Specifications

Approvals

Approvals	CULUS
UL File Number Search	E307231

ROHS	Conform

Dimensions And Weights

Net weight	1,232 g

Standards

Connector standard	IEC 61076-2-104

Certificate no. (cULus)	E307231

General Technical Data

Version	Socket, angled
Housing main material	PUR
Coding	none
Contact surface	Gold-plated
Rated voltage	30 V
Insulation strength	108 Ω
Tightening torque	M8: 0.5 - 0.6 Nm
Pollution severity	3

Connection thread	M8
Threaded ring material	Diecast zinc
Protection degree	IP65, IP66, IP67, IP68, when screwed in
LED	No
Rated current	4 A
Temperature range of housing	-25…+80 °C
Plugging cycles	≥ 100
jumpered	No

Technical Specifications For Cable

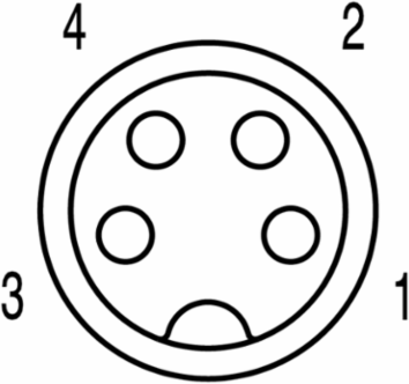

Number of poles	4
Outside diameter	5.1 ± 0.2 mm
Shielded	Yes

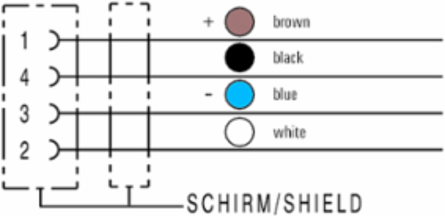

Colour coding	brown, black, blue, white
Sheathing colour	black
Temperature range, moving	-25...80 °C
Outer cladding in accordance with UL AWM style	20549 (80 °C / 300 V)
Torsion resistance	0 °/m
Bending radius, min., moving	12 x conductor cross-section
Speed	100 m/min
Resistant to welding beads	No
Resistance to spread of flame	in accordance with IEC 60332-2

Core cross-section	0.34 mm²
Cable length	30 m
Insulation	PP
Sheath material	PUR
Halogen	No
Temperature range, stationary	-40...80 °C
Suitable for cable carriers	Yes
Bending radius, min., stationary	5 x cable diameter
Acceleration	5 m/s²
Bending cycles	250.000
Configurable cable length	No
