Weidmuller 1938261000 SAIL-M8GM12G-4-10V
- MPN: 1938261000
- PPN: WDM-1938261000
CAD
$27.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

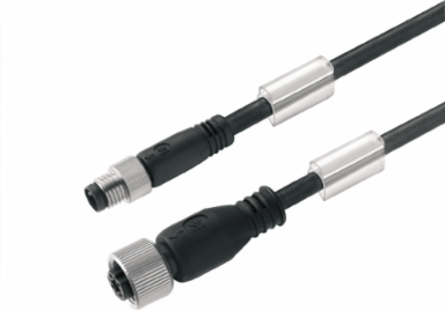

Sensor/actuator line, Connecting line, M8 / M12, Number of poles : 4, 10 m, pin, straight - socket, straight, Shielded: No, LED: No, Sheath material: PVC, Halogen: Yes
Documentation & Downloads
Specifications
Approvals
- Approvals
- EAC
- UL File Number Search
- E307231
ROHSConform
Dimensions And Weights
- Net weight
- 367 g
Standards
- Connector standard
- IEC 61076-2-101, IEC 61076-2-104
Certificate No. (cURus)E307231
General Technical Data
- Version
- pin, straight - socket, straight
- Housing main material
- PUR
- Coding
- M12 = A, M8 = none
- Contact surface
- Gold-plated
- Rated voltage
- 30 V
- Insulation strength
- 108 Ω
- Tightening torque
- M8: 0.5 - 0.6 Nm, M12: 0.8 - 1.2 Nm
- Pollution severity
- 3
Connection threadM8 / M12
Threaded ring materialDiecast zinc
Protection degreeIP65, IP66, IP67, IP68, when screwed in
LEDNo
Rated current4 A
Temperature range of housing-25…+80 °C
Plugging cycles≥ 100
jumperedNo
Technical Specifications For Cable

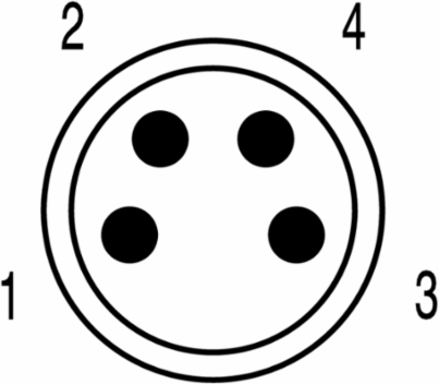

- Number of poles
- 4
- Outside diameter
- 4.8 ± 0.2 mm
- Shielded
- No

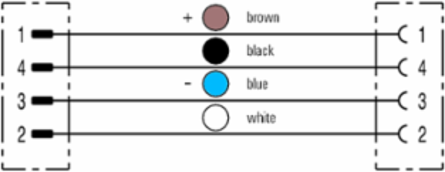

- Colour coding
- brown, white, blue, black
- Sheathing colour
- black
- Temperature range, moving
- -5...80 °C
- Outer cladding in accordance with UL AWM style
- 2464 (80 °C / 300 V)
- Torsion resistance
- 0 °/m
- Configurable cable length
- No
Core cross-section0.25 mm²
Cable length10 m
InsulationPVC
Sheath materialPVC
HalogenYes
Temperature range, stationary-30...80 °C
Suitable for cable carriersNo
Resistant to welding beadsNo
Classifications
- ETIM 6.0
- EC001855
- eClass 9.0
- 27-06-03-11
- eClass 10.0
- 27-06-03-11
ETIM 7.0EC001855
eClass 9.127-06-03-11
UNSPSC26-12-16-13
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature range, max.
- 80 °C
- Operating temperature, max.
- 80 °C
Operating temperature range, min.-5 °C
Operating temperature, min.-25 °C
