Weidmuller 1938241000 SAIL-M8GM12W-3-10V

MPN: 1938241000
PPN: WDM-1938241000

$23.15

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

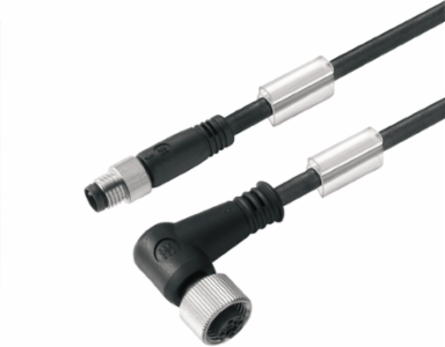

Sensor/actuator line, Connecting line, M8 / M12, Number of poles : 3, 10 m, pin, straight - socket, 90°, Shielded: No, LED: No, Sheath material: PVC, Halogen: Yes

Documentation & Downloads

Specifications

Approvals

Approvals	EAC
UL File Number Search	E307231

ROHS	Conform

Dimensions And Weights

Net weight	100 g

Standards

Connector standard	IEC 61076-2-101, IEC 61076-2-104

Certificate No. (cURus)	E307231

General Technical Data

AF size	12 mm
Connection thread	M8 / M12
Threaded ring material	Diecast zinc
Protection degree	IP65, IP66, IP67, IP68, when screwed in
LED	No
Rated current	4 A
Temperature range of housing	-25…+80 °C
Plugging cycles	≥ 100
jumpered	No

Version	pin, straight - socket, 90°
Housing main material	PUR

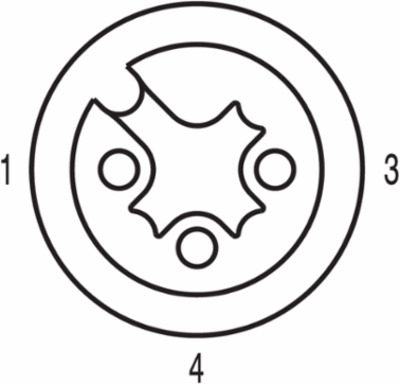

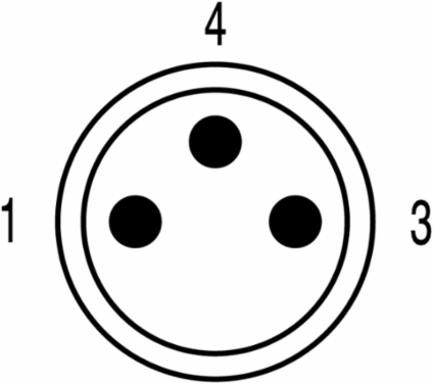

Coding	M12 = A, M8 = none
Contact surface	Gold-plated
Rated voltage	60 V
Insulation strength	108 Ω
Tightening torque	M8: 0.5 - 0.6 Nm, M12: 0.8 - 1.2 Nm
Pollution severity	3

Technical Specifications For Cable

Number of poles	3
Outside diameter	4.5 ± 0.2 mm
Shielded	No
Colour coding	brown, blue, black
Sheathing colour	black
Temperature range, moving	-5...80 °C
Outer cladding in accordance with UL AWM style	2464 (80 °C / 300 V)
Torsion resistance	0 °/m
Configurable cable length	No

Core cross-section	0.25 mm²
Cable length	10 m
Insulation	PVC
Sheath material	PVC
Halogen	Yes
Temperature range, stationary	-30...80 °C
Suitable for cable carriers	No
Resistant to welding beads	No
