Weidmuller 2466630150 SAIL-M8W-5-1.5U
- MPN: 2466630150
- PPN: WDM-2466630150
CAD
$17.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

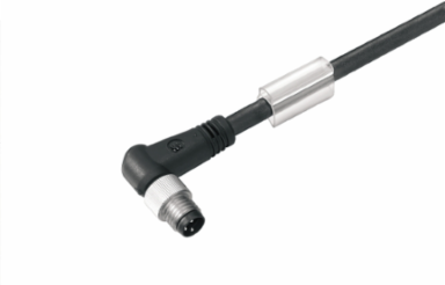

Sensor/actuator line, M8, Number of poles : 5, 1.5 m, pin, 90°, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Specifications
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 59 g |
|---|
General Technical Data
| Version | pin, 90° |
|---|---|
| Housing main material | PUR |
| Coding | B |
| Contact surface | Gold-plated |
| Rated voltage | 60 V |
| Insulation strength | 108 Ω |
| Tightening torque | M8: 0.5 - 0.6 Nm |
| Pollution severity | 3 |
| Connection thread | M8 |
|---|---|
| Threaded ring material | Nickel-plated CuZn |
| Protection degree | IP69K |
| LED | No |
| Rated current | 3 A |
| Temperature range of housing | -25…+80 °C |
| Plugging cycles | ≥ 100 |
Technical Specifications For Cable

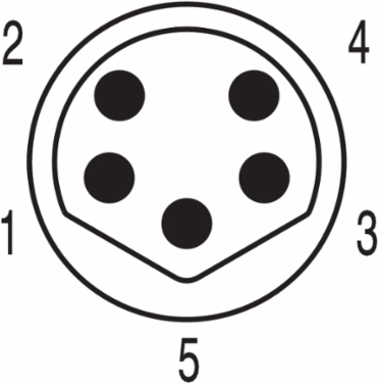

| Number of poles | 5 |
|---|---|
| Cable length | 1.5 m |
| Insulation | PP |
| Sheathing colour | black |
| Temperature range, moving | -25...80 °C |
| Outer cladding in accordance with UL AWM style | 20549 (80 °C / 300 V) |
| Torsion resistance | 360 °/m |
| Bending radius, min., moving | 10 x cable diameter |
| Speed | 5 m/s |
| Resistant to welding beads | No |
| Core cross-section | 0.25 mm² |
|---|---|
| Shielded | No |
| Sheath material | PUR |
| Halogen | No |
| Temperature range, stationary | -40...80 °C |
| Suitable for cable carriers | Yes |
| Bending radius, min., stationary | 5 x cable diameter |
| Acceleration | 5 m/s² |
| Bending cycles | 2 Mio |
| Configurable cable length | No |
Classifications
| ETIM 6.0 | EC001855 |
|---|---|
| eClass 9.0 | 27-06-03-11 |
| eClass 10.0 | 27-06-03-11 |
| ETIM 7.0 | EC001855 |
|---|---|
| eClass 9.1 | 27-06-03-11 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
