Weidmuller 9457550000 SAIS-4/7
Weidmuller 9457550000 SAIS-4/7
- MPN: 9457550000
- PPN: WDM-9457550000
Spec sheet
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$9.33/ EA
Description

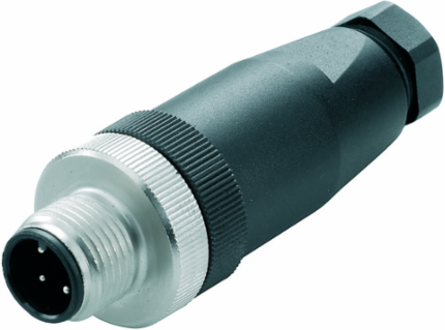

Plugs prefabricated to customer spec., M12, pin, straight
Specifications
Approvals
- Approvals
- cURus, EAC
- UL File Number Search
- E307231
ROHSConform
Dimensions And Weights
- Net weight
- 22.4 g
Standards
- Connector standard
- IEC 61076-2-101
Certificate No. (cURus)E307231
Classifications
- ETIM 6.0
- EC002062
- eClass 9.0
- 27-44-01-02
- eClass 10.0
- 27-44-01-02
ETIM 7.0EC002635
eClass 9.127-44-01-03
UNSPSC30-21-18-10
Technical Data Customisable Plug-In Connectors
- Cable diameter, max.
- 6 mm
- Cable glands
- PG 7
- Connection cross-section, max.
- 0.75 mm²
- Contact surface
- CuSnZn
- Insulation strength
- 108 Ω
- Plugging cycles
- ≥ 50
- Protection degree
- IP67
- Rated voltage
- 250 V
- Temperature range of housing
- -40 … +85 ° C
- Type of connection
- Screw connection
Cable diameter, min.4 mm
CodingA
Connection cross-section, min.0.14 mm²
Housing main materialPA

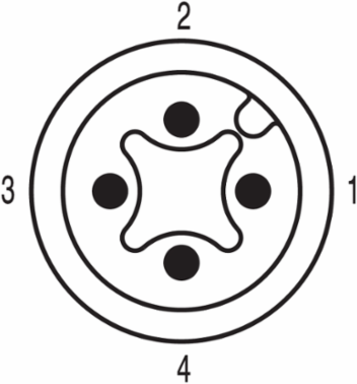

Number of poles4
Pollution severity3
Rated current4 A
Shield connectionNo
Threaded ring materialDiecast zinc
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature range, max.
- 85 °C
- Operating temperature, max.
- 85 °C
Operating temperature range, min.-25 °C
Operating temperature, min.-40 °C
Downloads
