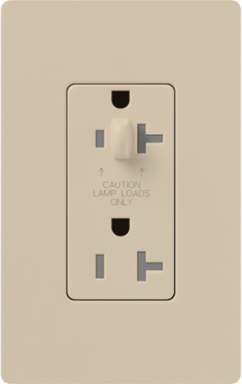

Lutron SCR-20-HDTR-TP-C Satin Tamper-Resistant Receptacle, 20A/125V, Taupe, 2500W, 4.69 x 2.94 Inch
Lutron SCR-20-HDTR-TP-C Satin Tamper-Resistant Receptacle, 20A/125V, Taupe, 2500W, 4.69 x 2.94 Inch
- MPN: SCR-20-HDTR-TP-C
- UPC: 027557783309
- PPN: LUT-SCR-20-HDTR-TP-C
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$78.05/ EA
Features
- Features on receptacle(s) for dimming use reject standard plugs
- Uses standard switched receptacle wiring (HDTR requires two separate live/hot feeds)
- Permanently installed internal tamper resistant shutter mechanism capable of resisting insertion of foreign elements into the device
- Specification grade construction
- Back wire installation capable
- Receptacle face compatible with NEMA designer and Nova T opening wallplates
- Plug may be used with standard receptacles and with new receptacles designed for dimming use
- Plug is compatible with 18 AWG (0.75 mm2) SPT-2 lamp cords
- Plug uses split-shell design for easy wiring and the ability to control cord exit direction
- Top half for dimming
- Projecting nub prevents standard plug from being used
- Requires replacement plug for dimming table and floor lamps
- Bottom half is a general use receptacle and will fit standard duplex plugs
- Tamper resistant shutter mechanism.
Specifications
Specifications
- Application
- Lighting Control
- Wire Size
- 10 to 12
- Voltage Rating
- 125
- Environmental Conditions
- 0 to 90% humidity, non-condensing
- Wattage
- 2500 W
- NEMA Rating
- 5-20R
- Decorative Color
- Taupe
- Surface Finishing
- Satin
- Insulation
- Plastic
- Temperature Rating
- 32 to 104 F
- Aesthetic Finish
- Satin
- Finish
- Satin
Family ColorGray
TypeReceptacle for half-dimming use
ConnectionScrew terminal
Number of Wires3,4,5
Amperage Rating20 A
Temperature Rating, Maximum104 F
Number of Poles2
MountingWallbox
Material QualityPlastic/Metal
MaterialPlastic/Metal
Size4.69 x 2.94;119 x 75 in;mm
ColorTaupe
