Weidmuller 7760056366 SCM/SDI P CC
- MPN: 7760056366
- PPN: WDM-7760056366
CAD
$2.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

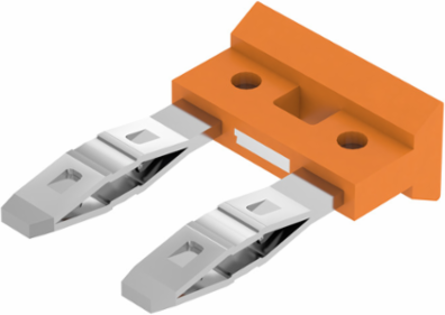

D-SERIES, Cross-connector
Documentation & Downloads
Specifications
General Data
| Version | for D-SERIES sockets with PUSH IN connection |
|---|
| Colour | orange |
|---|
Approvals
| ROHS | Conform |
|---|

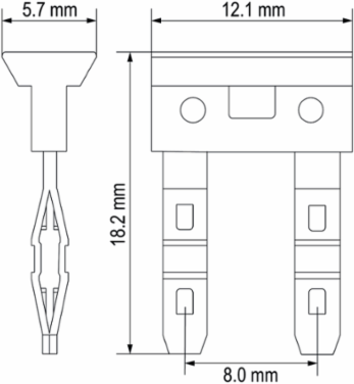

Dimensions And Weights
| Width | 12.1 mm |
|---|---|
| Height | 5.7 mm |
| Depth | 18.2 mm |
| Net weight | 1 g |
| Width (inches) | 0.476 inch |
|---|---|
| Height (inches) | 0.224 inch |
| Depth (inches) | 0.717 inch |
Connection Data
| Pitch in mm (P) | 8 mm |
|---|
Cross-Connection Data
| Rated voltage | 250 V |
|---|---|
| Insulation | Yes |
| Colour | orange |
| Number of poles | 2 |
| Type of mounting | Plugged |
| Rated current | 2 A |
|---|---|
| Touch-safe protection | Yes |
| Number of cross-connected terminals | 2 |
| Pitch in mm (P) | 8 mm |
| Version | for D-SERIES sockets with PUSH IN connection |
Classifications
| ETIM 6.0 | EC002586 |
|---|---|
| eClass 9.1 | 27-37-16-92 |
| ETIM 7.0 | EC002586 |
|---|---|
| eClass 10.0 | 27-37-16-92 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Insulation Coordination
| Rated voltage | 250 V |
|---|
