Leviton

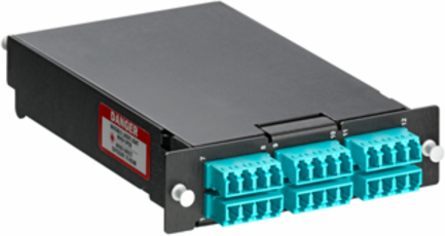

Leviton SPLCS-24A SDX Pigtail Fusion Metal Splice Module pre-loaded with quad LC adapters (Aqua) and 24-fiber OM3 LC/PC individual pigtails. Includes 40mm splice sleeves. Works with all SDX Enclosures

SDX Pigtail Fusion Metal Splice Module pre-loaded with quad LC adapters (Aqua) and 24-fiber OM3 LC/PC individual pigtails. Includes 40mm splice sleeves. Works with all SDX Enclosures
  • MPN: SPLCS-24A
  • UPC: 078477632789
  • PPN: LEV-SPLCS-24A

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1945.98/ EA

Description

SDX 12- and 24-Fiber Metal Modules protect and organize heat-shrink fusion spliced fibers (up to 12 or 24 fibers) inside a fiber enclosure. The modular design enables faster field splicing and simple management of pigtails within the housing. Fiber splice modules eliminate the need for individual splice trays within a fiber enclosure and provide optimal organization and slack management of fibers. Typical applications include Wide Area Networks (WAN), campus environments, high-count riser buildings, government installations, data centers, and central offices

Features

  • Module integrates fiber adapter bulkhead (12 or 24 fibers) and splice holders, eliminating the need of fiber splice trays
  • Offered in single-mode (OS2) UPC and APC and laser-optimized multimode OM3 and OM4 fiber types
  • Individual compartments provide slack storage and bend radius guides for respective backbone cable, 900 µm tight-buffer pigtails, and fusion-spliced fibers
  • 12-fiber, color-coded 900 µm tight-buffer pigtails are one meter and pre-loaded in module per specific configuration
  • Modular design allows for ease of maintenance of individual spliced fiber and allows for scaling up without impacting existing fibers
  • Accessory kit consists of 40 mm heat-shrink style fiber splice sleeves, tie wraps, and braided mesh sleeve

Specifications

Specifications

Country of Origin
Please Contact Customer Service
RoHS CompliantFalse
