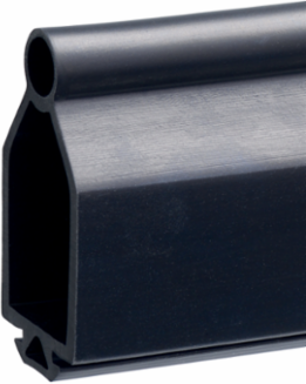

Schmersal 101172168 Safety Edge Rubber Profile 2.5 Meter EPDM 65 Shore A, IP67, 70 mm Height
- MPN: 101172168
- PPN: SCM-101172168
CAD
$266.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Safety Edge Rubber Profile 2.5 Meter EPDM 65 Shore A, IP67, 70 mm Height
Features
- Dirt and moisture in the profile are to a great extent compensated
- Insensitive to environmental conditions
- approx. 70 mm high including aluminum profile
Documentation & Downloads
Specifications
Key Specifications
- Length
- 2,500 mm
Width30 mm
Note
- Note (General)
- If a higher resistance is required, choose safety edge profiles with 20 µm plastic coating. The coating must be submitted to low mechanical loads only.

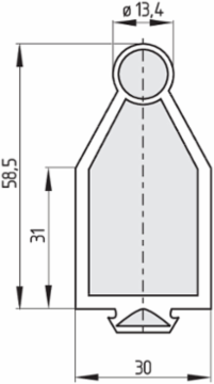

Mechanical data - Dimensions
- Width
- 30 mm
- Width, maximum
- 10,000 mm
Width, minimum400 mm
Height, approx.70 mm
General data
- Standards
- EN ISO 13850
- Material resistance (acids)
- Good
- Note (Material of the rubber profile)
- International abbreviation: EPDM, 65 Shore A | Chemical name : Ethylene-propylene terpolymer
Resistance against permanent deformationGood
Material of the rubber profileEPDM, 65 Shore A
Gross weight1,535 g
Notes - Chemical resistance
- Material resistance (fuel)
- Low
- Material resistance (oil)
- Low
- Material resistance, (rebound elasticity at 20 C)
- Good
Material resistance (solvents)low to satisfactory
Material resistance (ozone)Excellent
Material resistance (weather)Excellent
Ambient conditions
- Degree of protection
- IP67
- Material temperature resistance (short-term), maximum
- +170 °C
- Material temperature resistance (long-term), maximum
- +140 °C
Material temperature resistance (short-term), minimum-50 °C
Material temperature resistance (long-term), minimum-30 °C
Mechanical data
- Mechanical life, minimum
- 20,000,000 Operations
