nVent Hoffman SBK20XX8Z4 Seismic Kit Zone 4, SBK-Z4, 2000xWx800mm
- MPN: SBK20XX8Z4
- UPC: 783510598877
- PPN: HOF-SBK20XX8Z4
- UNSPSC: 43223306
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

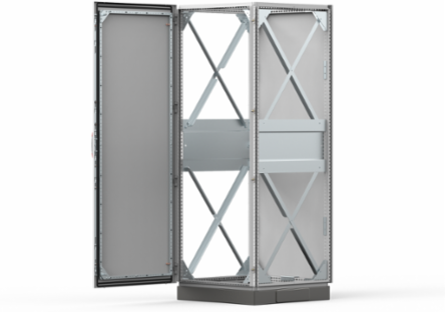

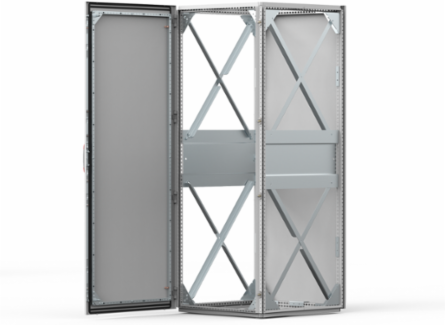

Seismic Kit Zone 4, SBK-Z4, 2000xWx800mm
Features
- Description: Reinforcement Kit to be added to standard MCS enclosures in order to reach a Seismic Zone 4 rating.
- Braces: 2 X shapped braces, of 12ga galvanized steel, which provides resistance to the frame going out of square.
- Side Plate: which adds rigidity and strength as well as extra mounting surface for components.
- Corners: 4 total corner brackets, of 10ga galvanized steel, which make the weld joints of the frame more robust.
- Door Pin: Mounted onto the door bars, it locks into a hole in the corner bracket, which prevents the door from jumping out of its lock catchers in an earthquake event.
- Pack Qty: 1 Assembly per order.
- Mounting Requirement: Complete assembly with SPM Side panels, but mounted with seismic hardware included in SBK Kit delivery.
- If Plinth is required, PSB-Z4 needs to be ordered separately.
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Depth (D)
- 800
- Material
- Galvanized Steel
- Compatible Enclosure Width
- 600
Height (H)2,000
Works WithIEC
Package Quantity1
