Federal Signal 302GCX-240-CN SelecTone 30W Amplified Speaker, Hazardous Location, UL and cUL CID2, Zone Listed, 240VAC, Gray
Federal Signal 302GCX-240-CN SelecTone 30W Amplified Speaker, Hazardous Location, UL and cUL CID2, Zone Listed, 240VAC, Gray
- MPN: 302GCX-240-CN
- UPC: 782979247210
- PPN: FDS-302GCX-240-CN
- UNSPSC: 46171602
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2681.87/ EA
Description

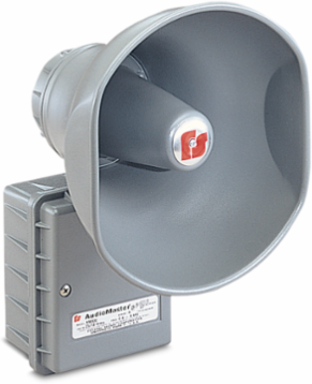

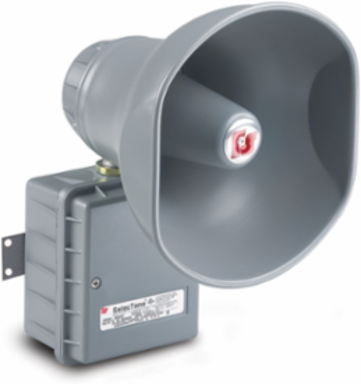

Model 302GCX-CN SelecTone® Amplified Speaker is designed to produce tones, digital voice messages and live public address in harsh environments with high ambient noise levels.The rugged speaker cone and projector are constructed of spun aluminum. The amplification circuitry, tone module, and gain control are contained in a housing constructed of die-cast aluminum. All surfaces are sealed with powder-coat paint. Dust- and moisture-proof gaskets provide protection from the elements.SelecTone Amplified Speakers are used individually or as part of a plant-wide emergency notification system. Model UTM Universal Tone Module with 32 tones, or model TM33-SD Custom Tone Module is plugged into a single SelecTone Amplified Speaker for stand-alone use or into a SelecTone Command Unit for plant-wide signaling.For plant-wide signaling, a Connector Kit is installed into each SelecTone Amplified Speaker and wired to a central controller, SelecTone Command Unit or CommCenter® Digital Message Center. Command Units and CommCenters broadcast tones, voice messages, melodies and live public address to an unlimited number of SelecTone Amplified Speakers.Applications for SelecTone include emergency warning, evacuation, start/dismissal, public address, and process control signaling.
Features
- Available in 24VAC/DC, 120VAC and 240VAC
- Reliable, solid-state circuitry
- Digital signal amplification
- Fused input and output
- Built-in gain control, adjustable between 0 dBa to 114 dBa @ 10' (0 dBa to 124 dBa @ 1m)
- Type 4X, IP66 enclosure
- IP69K compliant
- External mounting tabs
- Indoor/outdoor use
- UL and cUL Listed for Class I, Zone 2, AEx nA IIC Gc; Class II, Zone 22 AEx tc IIIC Dc
Specifications
Specifications
- Country of Origin
- United States
- Certification Listing
- UL, cUL
- dBa 10 Ft
- 114
- Mount Type
- Surface
- Operating Temp.
- -67˚ to +150˚F (-55˚ to +66˚C)
- Standby Current
- 35 mA
- Depth
- 13.9 in, 35.306 cm
- Width
- 10.2 in, 25.908 cm
Weight5.5 lbs
dBa 1 Meter124
AvailabilityAvailable in 4-6 weeks
Operating Current Amps0.15
Operating Voltage240 Vac
Audible Signals Voltage240VAC
Height13.9 in, 35.306 cm
