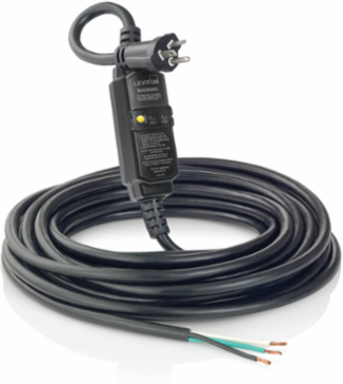

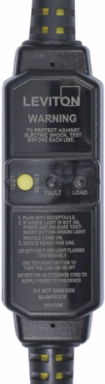

Leviton GSCA2-37E 20 Amp GFCI Cord Set, 37 Foot, 120 VAC, Automatic Reset
- MPN: GSCA2-37E
- UPC: 078477683118
- PPN: LEV-GSCA2-37E
CAD
$260.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
20 Amp, 120 VAC, Self-Test Automatic Reset GFCI Cord Set, 37 Foot 3 Inch, 12-3 SJTW Cord, Molded on NEMA Plug (5-20P), End with 3.0” Leads Stripped 0.5”, Black
Features
- Satisfies latest UL 943 self-test requirement
- Improve safety – protect critical personnel from electrical shocks
- Withstand outdoor conditions – rainproof and outdoor rated devices are OSHA compliant and feature weather-resistant SJTW cables
- Ideal for – vending machines, construction sites, RV parks, marinas, and spas/hot tubs
- Automatic reset – automatically restore power to connected equipment when plugged in or after power interruption, ideal for hard to access locations
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
RoHS CompliantFalse
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL 498
- File E-48380
- Warranty
- 2-Year Limited
CSA C22.2File LR-57811
NOM057
UL 943Class A (GFCI)
Material Specifications
- Blades/Contacts
- Brass
- Color
- Black
Body MaterialPolycarbonate
Mechanical Specifications
- Cord Length
- 37 FT.
- Product ID
- Ratings marked on device label
Cord Type12-3 SJTW Black
Environmental Specifications
- Flammability
- Rated V-2 per UL94
Operating Temperature-35°C to 66°C
Electrical Specifications
- Amperage
- 20 A
- Grounding
- GFCI Ground Fault
- Temperature Rise
- Max 30C after 50 cycles OL at 150 percent rated current
- Voltage
- 120 VAC
Current Interrupting2 kA
Pole2
Trip Level5mA plus or minus 1mA
Wire3
AC Horsepower Ratings
- At Rated Voltage
- 3/4 Horsepower
