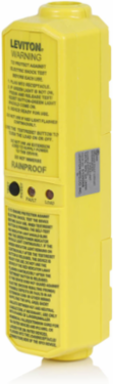

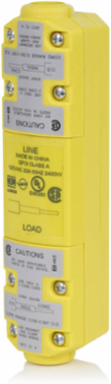

Leviton GSIM2 20 Amp Rainproof In-Line GFCI with Manual Reset, 120 VAC, Yellow
- MPN: GSIM2
- UPC: 078477682937
- PPN: LEV-GSIM2
CAD
$72.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
20 Amp, 120 VAC, Self-Test Manual Reset In-Line User-Attachable GFCI, Rainproof Design, Yellow
Features
- Satisfies latest UL 943 self-test requirement
- Improve safety – protect critical personnel from electrical shocks
- Withstand outdoor conditions – rainproof and outdoor rated devices are OSHA compliant and feature weather-resistant SJTW cables
- Ideal for – vending machines, construction sites, RV parks, marinas, and spas/hot tubs
- MANUAL RESET (YELLOW) models require manual actuation to restore power to connected equipment providing an extra level of safety
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| CSA C22.2 | File LR-57811 |
| NOM | 057 |
| UL 943 | Class A (GFCI) |
| CSA | C22.2 No.42 & No. 144 |
|---|---|
| NEMA | WD-6 |
| UL 498 | File E-48380 |
| Warranty | 2-Year Limited |
Material Specifications
| Blades/Contacts | Brass |
|---|---|
| Color | Yellow |
| Body Material | Polycarbonate |
|---|
Mechanical Specifications
| Cord Type | Accepts SJ & ST Cord Types |
|---|---|
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Product ID | Ratings marked on device label |
|---|
Environmental Specifications
| Flammability | Rated V-2 per UL94 |
|---|
| Operating Temperature | -35C to +66C |
|---|
Electrical Specifications
| Amperage | 20 A |
|---|---|
| Grounding | GFCI Ground Fault |
| Short Circuit Current Rating | 2kA |
| Trip Level | 5mA plus or minus 1mA |
| Wire | 3 |
| Current Interrupting | 2 kA |
|---|---|
| Pole | 2 |
| Temperature Rise | Max 30C after 50 cycles OL at 150 percent rated current |
| Voltage | 120 VAC |
AC Horsepower Ratings
| At Rated Voltage | 3/4 Horsepower |
|---|
