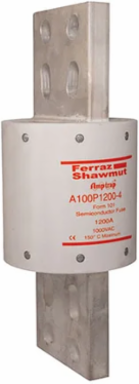

Mersen A100P1200-4 Amp-Trap® High Speed Semiconductor Fuse 1000V 1200A 200kA
- MPN: A100P1200-4
- UPC: 782001948887
- PPN: FER-A100P1200-4
CAD
$2833.56
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
A100P Amp-Trap® Form 101 high speed fuses are rated 1000V, extending the range of protection for UPS systems, AC and DC drives, reduced voltage motor starters and similar applications where lower I2t and superior reliability are needed. With ratings from 15 through 1000 amperes, a wide range of high voltage applications can be served.
Features
- Engineered specifically for semiconductor device protection, this Form 101 high-speed fuse utilizes an extremely low thermal energy clearing threshold (I^2t) to isolate faults within milliseconds. This rapid intervention prevents catastrophic thermal damage to expensive internal components like thyristors, SCRs, and IGBTs during short-circuit events, effectively preventing costly equipment failure and cascading circuit damage.
- This semiconductor fuse features robust dual-voltage capabilities, holding a maximum rating of 1000VAC and 750VDC with a massive 200kA interrupting rating. This extensive threshold delivers reliable arc-quenching performance across standard 50/60Hz frequencies, making it ideal for protecting large-scale uninterruptible power supply (UPS) systems, heavy industrial AC/DC variable speed drives, and solid-state reduced voltage motor starters.
- Built to handle a continuous 1200A operating current, the fuse body is constructed from advanced GMG (Glass-Melamine-Glass) insulating material. This high-density composite ensures superior dimensional stability and structural integrity under severe heat cycles, successfully mitigating the risk of structural cracking, arc tracking, or localized melting in demanding high-amperage electrical panels.
Documentation & Downloads
Specifications
Additional
- Voltage
- 1000 V AC, 750 V DC
- Interrupting Rating
- 200 kA
- Speed/Characteristic
- High Speed
- Length
- 11.47 in
- Connection Type
- Blade
- RoHS Compliance
- Yes
Amperage1200 A
Frequency50/60 Hz
MountingBolted
Weight17.25 lb
MaterialGMG (Body/Insulating Material)
