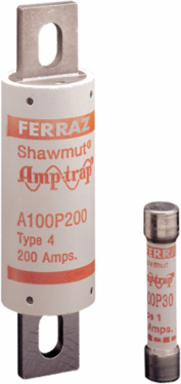

Mersen A100P30-1 Amp-Trap® Semiconductor Fuse 1000V 30A High Speed, Ferrule Terminal, 200 kA

MPN: A100P30-1
UPC: 782001949532
PPN: FER-A100P30-1

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$89.51/ EA

Qty:

Loading add to cart quantity...

Description

A100P Amp-Trap® Form 101 high speed fuses are rated 1000V, extending the range of protection for UPS systems, AC and DC drives, reduced voltage motor starters and similar applications where lower I2t and superior reliability are needed. With ratings from 15 through 1000 amperes, a wide range of high voltage applications can be served.

Specifications

Rated voltage AC UL: 1000 V

Ampere Rating: 30 A

Speed/Characteristic: High Speed

AC Max I.R./Breaking Capacity: I1: 200 kA

Connection/Terminal Type: Ferrule

Length: 2.63 in

Frequency (Hz)50/60 Hz

AC or DCAC

MountingClip

Connection/Terminal MaterialTin-Plated Copper

Body/Insulating MaterialGMG

Weight0.06 lb
