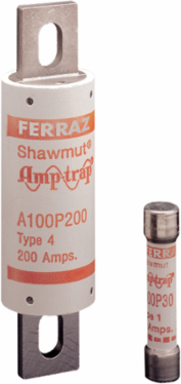

Mersen A100P70-4 Semiconductor Fuse 1000V 70A High Speed with 1.22 Inch Diameter
- MPN: A100P70-4
- UPC: 782001948368
- PPN: FER-A100P70-4
CAD
$302.67
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
A100P Amp-Trap® Form 101 high speed fuses are rated 1000V, extending the range of protection for UPS systems, AC and DC drives, reduced voltage motor starters and similar applications where lower I2t and superior reliability are needed. With ratings from 15 through 1000 amperes, a wide range of high voltage applications can be served.
Specifications
Key Specifications
- Rated voltage AC UL
- 1000 V
- Ampere Rating
- 70 A
- AC or DC
- AC
- Mounting
- Bolted
- Connection/Terminal Material
- Tin-Plated Brass
- Body/Insulating Material
- GMG
- Weight
- 0.53 lb
Frequency (Hz)50/60 Hz
ROHS CompliantYes
Speed/CharacteristicHigh Speed
AC Max I.R./Breaking Capacity: I1200 kA
Connection/Terminal TypeBlade
Length5 in
