Mersen A15QS1000-4TI High Speed Fuse Amp-Trap® A15QS 150VAC 150VDC 1000A Blade TI Indicator
Mersen A15QS1000-4TI High Speed Fuse Amp-Trap® A15QS 150VAC 150VDC 1000A Blade TI Indicator
- MPN: A15QS1000-4TI
- UPC: 782001287726
- PPN: FER-A15QS1000-4TI
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$337.84/ EA
Description

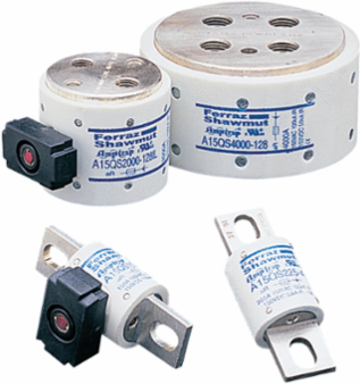

A15QS Amp-Trap® Form 101 high speed fuses were designed for the specific protection of diodes and other semiconductor devices rated 150VAC/DC. The A15QS product line’s compact design is perfect for those applications that have limitations on available space.
Specifications
Specifications
- Rated voltage AC UL
- 150 V
- Frequency (Hz)
- 50/60 Hz
- ROHS Compliant
- Yes
- Speed/Characteristic
- High Speed
- AC Max I.R./Breaking Capacity: I1
- 200 kA
- Indication System Type
- TI Indicator
- Connection/Terminal Type
- Blade
- Length
- 1.88 in
Rated voltage DC UL150 V
Ampere Rating1000 A
AC or DCAC/DC
MountingBolted
Indication SystemYes
Connection/Terminal MaterialTin-Plated Brass
Body/Insulating MaterialGMG
Weight0.48 lb
