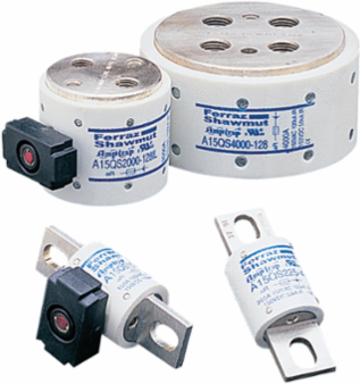

Mersen A15QS500-4 Semiconductor Fuse 150V 500A aR High Speed, 1.5 Inch Diameter

Semiconductor Fuse 150V 500A aR High Speed, 1.5 Inch Diameter
  • MPN: A15QS500-4
  • UPC: 782001288112
  • PPN: FER-A15QS500-4

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$278.77/ EA

Description

A15QS Amp-Trap® Form 101 high speed fuses were designed for the specific protection of diodes and other semiconductor devices rated 150VAC/DC. The A15QS product line’s compact design is perfect for those applications that have limitations on available space.

Specifications

Specifications

Rated voltage AC UL
150 V
Frequency (Hz)
50/60 Hz
ROHS Compliant
Yes
Speed/Characteristic
High Speed
AC Max I.R./Breaking Capacity: I1
200 kA
Connection/Terminal Type
Blade
Length
1.88 in
Rated voltage DC UL150 V
Ampere Rating500 A
AC or DCAC/DC
MountingBolted
Connection/Terminal MaterialTin-Plated Brass
Body/Insulating MaterialGMG
Weight0.48 lb
