Mersen A15QS70-4TI Semiconductor Fuse 150V 70A High Speed with Bolted Mounting and 1.13 Inch Diameter
Mersen A15QS70-4TI Semiconductor Fuse 150V 70A High Speed with Bolted Mounting and 1.13 Inch Diameter
- MPN: A15QS70-4TI
- UPC: 782001288228
- PPN: FER-A15QS70-4TI
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$173.48/ EA
Description

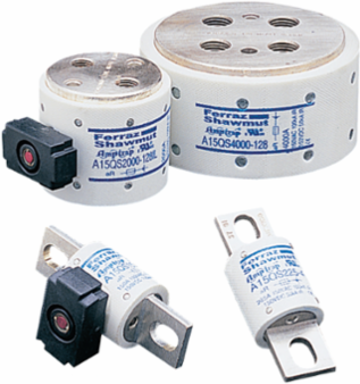

A15QS Amp-Trap® Form 101 high speed fuses were designed for the specific protection of diodes and other semiconductor devices rated 150VAC/DC. The A15QS product line’s compact design is perfect for those applications that have limitations on available space.
Specifications
Specifications
- Rated voltage AC UL
- 150 V
- Frequency (Hz)
- 50/60 Hz
- ROHS Compliant
- Yes
- Speed/Characteristic
- High Speed
- AC Max I.R./Breaking Capacity: I1
- 200 kA
- Indication System Type
- TI Indicator
- Connection/Terminal Type
- Blade
- Length
- 2.66 in
Rated voltage DC UL150 V
Ampere Rating70 A
AC or DCAC/DC
MountingBolted
Indication SystemYes
Connection/Terminal MaterialTin-Plated Brass
Body/Insulating MaterialGMG
Weight0.17 lb
