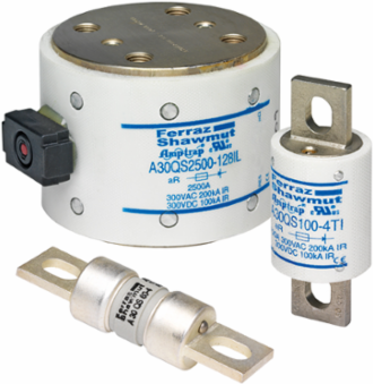

Mersen A30QS100-4 Semiconductor Fuse Amp-Trap® 100A 300V High Speed, 1.22 Inch Diameter
Mersen A30QS100-4 Semiconductor Fuse Amp-Trap® 100A 300V High Speed, 1.22 Inch Diameter
- MPN: A30QS100-4
- UPC: 782001280741
- PPN: FER-A30QS100-4
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$180.19/ EA
Description
A30QS Amp-Trap® high speed fuses are intended for the protection of Power Semiconductors such as diodes, phase control SCRs and other power semiconductor devices. The A30QS is recommended for new applications providing solutions for your critical protection needs at 300V and less semiconductors.
Specifications
Specifications
- Rated voltage AC UL
- 300 V
- Frequency (Hz)
- 50/60 Hz
- ROHS Compliant
- Yes
- Speed/Characteristic
- High Speed
- AC Max I.R./Breaking Capacity: I1
- 63 kA
- Connection/Terminal Type
- Blade
- Length
- 3.13 in
Rated voltage DC UL300 V
Ampere Rating100 A
AC or DCAC/DC
MountingBolted
Connection/Terminal MaterialTin-Plated Brass
Body/Insulating MaterialGMG
Weight0.3 lb
