Mersen A30QS1500-128IL Semiconductor Fuse Amp-Trap® 300V 1500A High Speed 4 Inch Diameter
Mersen A30QS1500-128IL Semiconductor Fuse Amp-Trap® 300V 1500A High Speed 4 Inch Diameter
- MPN: A30QS1500-128IL
- UPC: 782001283698
- PPN: FER-A30QS1500-128IL
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2813.08/ EA
Description

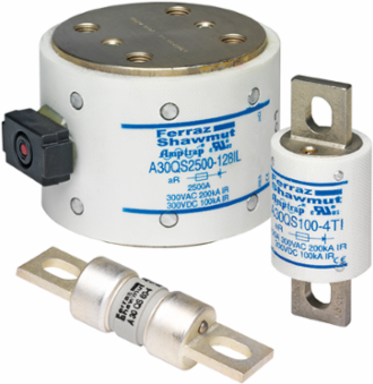

A30QS Amp-Trap® high speed fuses are intended for the protection of Power Semiconductors such as diodes, phase control SCRs and other power semiconductor devices. The A30QS is recommended for new applications providing solutions for your critical protection needs at 300V and less semiconductors.
Specifications
Specifications
- Rated voltage AC UL
- 300 V
- Frequency (Hz)
- 50/60 Hz
- ROHS Compliant
- Yes
- Speed/Characteristic
- High Speed
- AC Max I.R./Breaking Capacity: I1
- 47 kA
- Indication System Type
- IL Indicator
- Connection/Terminal Type
- Hockey Puck, Bolt-In
- Length
- 2.59 in
Rated voltage DC UL300 V
Ampere Rating1500 A
AC or DCAC/DC
MountingBolted
Indication SystemYes
Connection/Terminal MaterialSilver-Plated Brass
Body/Insulating MaterialGMG
Weight4.4 lb
