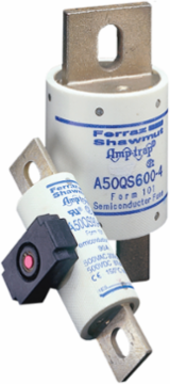

Mersen A50QS150-4IL Semiconductor Fuse Amp-Trap® 500V 150A High Speed 1.22 Inch Diameter
- MPN: A50QS150-4IL
- UPC: 782001305086
- PPN: FER-A50QS150-4IL
CAD
$265.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
A50QS Amp-Trap® Form 101 fuses grew out of the need to improve the overall performance of semiconductor fuses in response to new equipment requirements. The A50QS encompasses the best protection features – lower I2t to provide better protection for equipment, longer life when subjected to cyclic loading and lower watts loss. A50QS is today’s best choice for the protection of dynamic solid state equipment such as motor drives, inverters, UPS, etc.
Specifications
Key Specifications
- Rated voltage AC UL
- 500 V
- Frequency (Hz)
- 50/60 Hz
- ROHS Compliant
- Yes
- Speed/Characteristic
- High Speed
- AC Max I.R./Breaking Capacity: I1
- 50 kA
- Indication System Type
- IL Indicator
- Connection/Terminal Type
- Blade
- Length
- 3.63 in
Rated voltage DC UL500 V
Ampere Rating150 A
AC or DCAC/DC
MountingBolted
Indication SystemYes
Connection/Terminal MaterialTin-Plated Brass
Body/Insulating MaterialGMG
Weight0.47 lb
