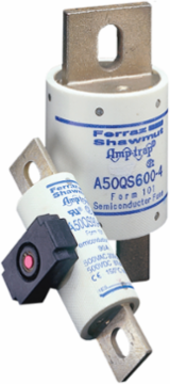

Mersen A50QS30-1 Semiconductor Fuse Amp-Trap 500V 30A High Speed 0.56 Inch Diameter
- MPN: A50QS30-1
- UPC: 782001142421
- PPN: FER-A50QS30-1
CAD
$54.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
A50QS Amp-Trap® Form 101 fuses grew out of the need to improve the overall performance of semiconductor fuses in response to new equipment requirements. The A50QS encompasses the best protection features – lower I2t to provide better protection for equipment, longer life when subjected to cyclic loading and lower watts loss. A50QS is today’s best choice for the protection of dynamic solid state equipment such as motor drives, inverters, UPS, etc.
Specifications
Key Specifications
| Rated voltage AC UL | 500 V |
|---|---|
| Ampere Rating | 30 A |
| Speed/Characteristic | High Speed |
| AC Max I.R./Breaking Capacity: I1 | 50 kA |
| Connection/Terminal Type | Ferrule |
| Length | 2.01 in |
| Frequency (Hz) | 50/60 Hz |
|---|---|
| AC or DC | AC |
| Mounting | Clip |
| Connection/Terminal Material | Tin-Plated Copper |
| Body/Insulating Material | GMG |
| Weight | 0.04 lb |
