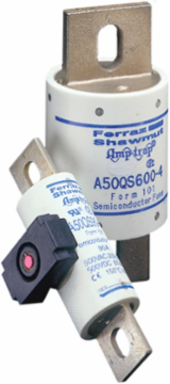

Mersen A50QS900-4 Amp-Trap® High Speed Semiconductor Fuse 500V 900A
Mersen A50QS900-4 Amp-Trap® High Speed Semiconductor Fuse 500V 900A
- MPN: A50QS900-4
- UPC: 782001142322
- PPN: FER-A50QS900-4
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1145.27/ EA
Description
A50QS Amp-Trap® Form 101 fuses grew out of the need to improve the overall performance of semiconductor fuses in response to new equipment requirements. The A50QS encompasses the best protection features – lower I2t to provide better protection for equipment, longer life when subjected to cyclic loading and lower watts loss. A50QS is today’s best choice for the protection of dynamic solid state equipment such as motor drives, inverters, UPS, etc.
Specifications
Specifications
- Rated voltage AC UL
- 500 V
- Frequency (Hz)
- 50/60 Hz
- ROHS Compliant
- Yes
- Speed/Characteristic
- High Speed
- AC Max I.R./Breaking Capacity: I1
- 50 kA
- Connection/Terminal Type
- Blade
- Length
- 6.97 in
Rated voltage DC UL500 V
Ampere Rating900 A
AC or DCAC/DC
MountingBolted
Connection/Terminal MaterialSilver-Plated Copper
Body/Insulating MaterialGMG
Weight4.8 lb
