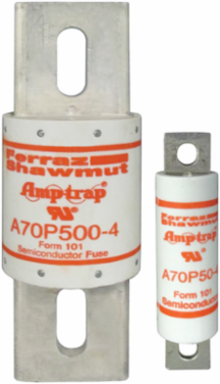

Mersen A70P150-4TI Amp-Trap Semiconductor Fuse 150A 700V High Speed 1.5 Inch Diameter
- MPN: A70P150-4TI
- UPC: 782001947262
- PPN: FER-A70P150-4TI
CAD
$544.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
A70P Amp-Trap® Form 101 high speed fuses were developed for higher voltage AC and DC drives, UPS systems, reduced voltage motor starters and similar applications where lower l2t and superior reliability are needed. A70P is a very popular fuse, available in a wide range of ratings. Typically used for replacement.
Specifications
Key Specifications
| Rated voltage AC UL | 700 V |
|---|---|
| Frequency (Hz) | 50/60 Hz |
| ROHS Compliant | Yes |
| Speed/Characteristic | High Speed |
| AC Max I.R./Breaking Capacity: I1 | 50 kA |
| Indication System Type | TI Indicator |
| Connection/Terminal Type | Blade |
| Length | 5.09 in |
| Rated voltage DC UL | 650 V |
|---|---|
| Ampere Rating | 150 A |
| AC or DC | AC/DC |
| Mounting | Bolted |
| Indication System | Yes |
| Connection/Terminal Material | Tin-Plated Brass |
| Body/Insulating Material | GMG |
| Weight | 0.6 lb |
