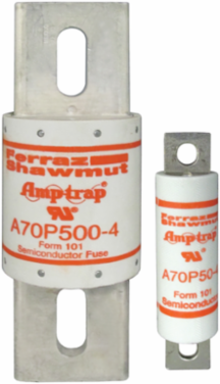

Mersen A70P15-4 High Speed Fuse Amp-Trap® A70P 700VAC 650VDC 15A Bolted Blade
Mersen A70P15-4 High Speed Fuse Amp-Trap® A70P 700VAC 650VDC 15A Bolted Blade
- MPN: A70P15-4
- UPC: 782001948139
- PPN: FER-A70P15-4
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$78.83/ EA
Description
A70P Amp-Trap® Form 101 high speed fuses were developed for higher voltage AC and DC drives, UPS systems, reduced voltage motor starters and similar applications where lower l2t and superior reliability are needed. A70P is a very popular fuse, available in a wide range of ratings. Typically used for replacement.
Specifications
Specifications
- Rated voltage AC UL
- 700 V
- Frequency (Hz)
- 50/60 Hz
- ROHS Compliant
- Yes
- Speed/Characteristic
- High Speed
- AC Max I.R./Breaking Capacity: I1
- 50 kA
- Connection/Terminal Type
- Blade
- Length
- 2.88 in
Rated voltage DC UL650 V
Ampere Rating15 A
AC or DCAC/DC
MountingBolted
Connection/Terminal MaterialTin-Plated Copper
Body/Insulating MaterialGMG
Weight0.45 lb
