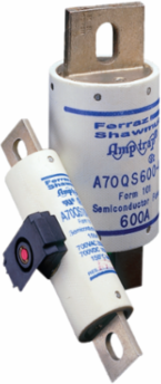

Mersen A70QS350-4 Semiconductor Fuse 700V 350A aR High Speed, 1.5 Inch Diameter, Tin-Plated Brass
Mersen A70QS350-4 Semiconductor Fuse 700V 350A aR High Speed, 1.5 Inch Diameter, Tin-Plated Brass
- MPN: A70QS350-4
- UPC: 782001948740
- PPN: FER-A70QS350-4
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$499.27/ EA
Description
A70QS Amp-Trap® high speed fuses were developed in response to the need for improved overall performance of 700V semiconductor fuses for new equipment requirements. A70QS fuses have lower I2t for better protection, longer life when subjected to cyclic loading, plus lower watts loss. A70QS is the best choice to protect dynamic solid state equipment such as motor drives, UPS, etc.
Specifications
Specifications
- Rated voltage AC UL
- 700 V
- Frequency (Hz)
- 50/60 Hz
- ROHS Compliant
- Yes
- Speed/Characteristic
- High Speed
- AC Max I.R./Breaking Capacity: I1
- 50 kA
- Connection/Terminal Type
- Blade
- Length
- 5.09 in
Rated voltage DC UL700 V
Ampere Rating350 A
AC or DCAC/DC
MountingBolted
Connection/Terminal MaterialTin-Plated Brass
Body/Insulating MaterialGMG
Weight0.95 lb
