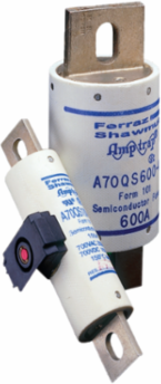

Mersen A70QS550-4K Amp-Trap® Semiconductor Fuse 700V 550A High Speed 2 Inch
- MPN: A70QS550-4K
- UPC: 782001303440
- PPN: FER-A70QS550-4K
CAD
$843.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
A70QS Amp-Trap® high speed fuses were developed in response to the need for improved overall performance of 700V semiconductor fuses for new equipment requirements. A70QS fuses have lower I2t for better protection, longer life when subjected to cyclic loading, plus lower watts loss. A70QS is the best choice to protect dynamic solid state equipment such as motor drives, UPS, etc.
Specifications
Key Specifications
- Rated voltage AC UL
- 700 V
- Frequency (Hz)
- 50/60 Hz
- ROHS Compliant
- Yes
- Speed/Characteristic
- High Speed
- AC Max I.R./Breaking Capacity: I1
- 40 kA
- Connection/Terminal Type
- Blade
- Length
- 7.09 in
Rated voltage DC UL700 V
Ampere Rating550 A
AC or DCAC/DC
MountingBolted
Connection/Terminal MaterialTin-Plated Copper
Body/Insulating MaterialGMG
Weight1.25 lb
