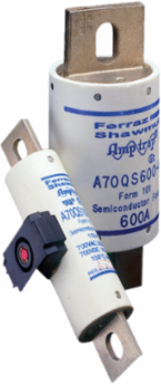

Mersen A70QS60-4IL Semiconductor Fuse Amp-Trap 700V 60A High Speed, 1 Inch Diameter
- MPN: A70QS60-4IL
- UPC: 782001328818
- PPN: FER-A70QS60-4IL
CAD
$199.76
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
A70QS Amp-Trap® high speed fuses were developed in response to the need for improved overall performance of 700V semiconductor fuses for new equipment requirements. A70QS fuses have lower I2t for better protection, longer life when subjected to cyclic loading, plus lower watts loss. A70QS is the best choice to protect dynamic solid state equipment such as motor drives, UPS, etc.
Documentation & Downloads
Specifications
Key Specifications
| Rated voltage AC UL | 700 V |
|---|---|
| Frequency (Hz) | 50/60 Hz |
| ROHS Compliant | Yes |
| Speed/Characteristic | High Speed |
| AC Max I.R./Breaking Capacity: I1 | 50 kA |
| Indication System Type | IL Indicator |
| Connection/Terminal Type | Blade |
| Length | 4.38 in |
| Rated voltage DC UL | 700 V |
|---|---|
| Ampere Rating | 60 A |
| AC or DC | AC/DC |
| Mounting | Bolted |
| Indication System | Yes |
| Connection/Terminal Material | Tin-Plated Brass |
| Body/Insulating Material | GMG |
| Weight | 0.57 lb |
