Mersen A70P800-4TA Semiconductor Fuse 700V 800A High Speed, 2.88 Inch Diameter, Bolted Mounting
Mersen A70P800-4TA Semiconductor Fuse 700V 800A High Speed, 2.88 Inch Diameter, Bolted Mounting
- MPN: A70P800-4TA
- UPC: 782001946807
- PPN: FER-A70P800-4TA
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1681.05/ EA
Description

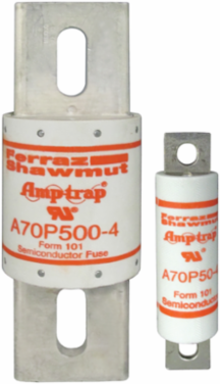

A70P Amp-Trap® Form 101 high speed fuses were developed for higher voltage AC and DC drives, UPS systems, reduced voltage motor starters and similar applications where lower l2t and superior reliability are needed. A70P is a very popular fuse, available in a wide range of ratings. Typically used for replacement.
Specifications
Specifications
- Rated voltage AC UL
- 700 V
- Frequency (Hz)
- 50/60 Hz
- ROHS Compliant
- Yes
- Speed/Characteristic
- High Speed
- AC Max I.R./Breaking Capacity: I1
- 50 kA
- Indication System Type
- TA Indicator
- Connection/Terminal Type
- Blade
- Length
- 6.81 in
Rated voltage DC UL650 V
Ampere Rating800 A
AC or DCAC/DC
MountingBolted
Indication SystemYes
Connection/Terminal MaterialSilver-Plated Copper
Body/Insulating MaterialGMG
Weight2.35 lb
