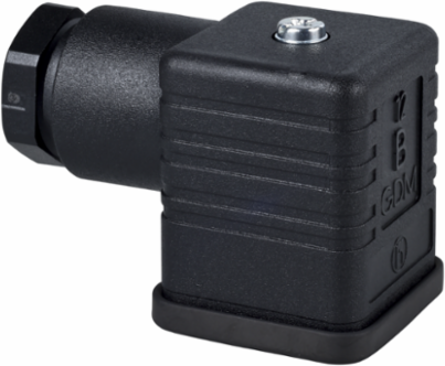

Telemecanique Sensors XZCC43FCP40B Female, DIN 43650 A, 4 pin, elbowed connector, cable gland Pg 11
- MPN: XZCC43FCP40B
- PPN: TES-XZCC43FCP40B
- UNSPSC: 39122238
CAD
$57.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This product is part of the XZ range, an offer of machine cabling accessories. This elbowed female connector features a PG11 cable gland. It provides locking screw for fixing. It is a DIN 43650 A connector with a rated operational voltage of 250V AC and a rated current of 16A. It is furnished with screw terminal for cable connection. It is an IP65 rated product. The enclosure is made of plastic. It weighs 0.035kg. It is suitable for railway, mobile equipment, lifts, escalators, hoisting, material handling/conveying/logistics, material working/machine tools, packaging, robotics, food and beverage industries.
Documentation & Downloads
Specifications
Key Specifications
| Electrical Connection | elbowed female connector DIN 43650 A, 4 pins |
|---|---|
| Accessory / Separate Part Category | cabling accessories |
| Accessory / Separate Part Type | connector |
| Range Of Product | Telemecanique Cabling components |
|---|---|
| Status Led | without |
| Cable Connection | screw terminal 1.5 mm² 7-10 mm |
Complementary
| Minimum Insulating Resistance | 0.1 GΩ |
|---|---|
| Cable Connector Fixing | locking screw |
| Line Rated Current | 16 A |
| Net Weight | 0.035 kg |
| [Ue] Rated Operational Voltage | 250 V AC |
|---|---|
| Cable Gland Type | Pg 11 |
| Enclosure Material | Plastic |
| Contact Resistance | 4000 µOhm |
Environment
| Ambient Air Temperature For Operation | -40-125 °C |
|---|
| Ip Degree Of Protection | IP65 |
|---|
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Mercury Free | Yes |
|---|---|
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
