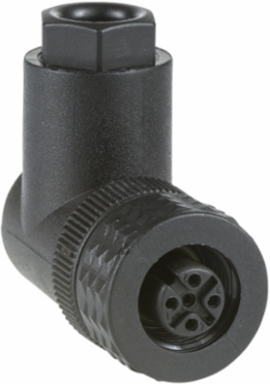

Telemecanique Sensors XZCC12FCP40B Female, M12, 4 pin, elbowed connector, cable gland Pg 7
- MPN: XZCC12FCP40B
- PPN: TES-XZCC12FCP40B
- UNSPSC: 39122238
CAD
$22.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This screw terminal has a elbowed female 4-pin M12 connector and a screw terminal with plastic clamping rings. It is designed for critical installations thanks to the high robustness metallic ring M12 connector.
Documentation & Downloads
Specifications
Key Specifications
- Collar Material
- plastic
- Range Of Product
- Telemecanique Cabling components
- Status Led
- without
- Cable Connection
- screw terminal 0.75 mm² 3-6 mm
Electrical Connectionelbowed female connector M12, 4 pins
Accessory / Separate Part Categorycabling accessories
Accessory / Separate Part Typeconnector
Complementary
- Minimum Insulating Resistance
- 1000 GΩ
- Cable Connector Fixing
- screw-on
- Line Rated Current
- 3 A
- Net Weight
- 0.02 kg
[Ue] Rated Operational Voltage125 V AC || 150 V DC
Cable Gland TypePg 7
Enclosure MaterialPlastic
Contact Resistance8000 µOhm
Environment
- Ambient Air Temperature For Operation
- -40-85 °C
Ip Degree Of ProtectionIP67
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mercury FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
