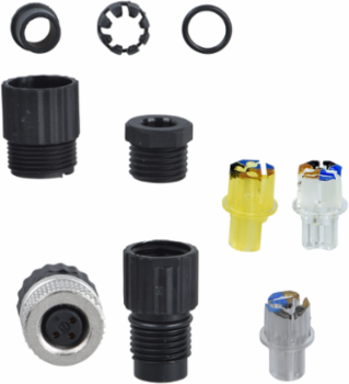

Telemecanique Sensors XZCC8FDM30V Female, M8, 3 pin, straight connector, cable gland M9.5 x 1
- MPN: XZCC8FDM30V
- PPN: TES-XZCC8FDM30V
CAD
$48.73
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This product is part of the XZ range, an offer of cabling accessories. It is a 3-pin M8 straight female connector with vampire clip. It has a metal collar, screw-on cable connector fixing and M9.5 cable gland. It is connector with a rated operational voltage of 60V AC, 75V DC and a rated current of 4A. It is an IP67 rated product. It weighs 0.01kg. It is ideal for material handling, packaging, labelling, assembly, lift, escalators or food and beverage industries. The range of machine wiring connectors and cordsets has been designed for optimal user-friendliness, simplifying connection and providing quick and safe reference identification. Improved connection of sensors to the enclosure.
Documentation & Downloads
Specifications
Key Specifications
- Collar Material
- metal
- Range Of Product
- Telemecanique Cabling components
- Status Led
- without
- Cable Connection
- vampire clip 0.25 mm² 5-5 mm
Electrical Connectionstraight female connector M8, 3 pins
Accessory / Separate Part Categorycabling accessories
Accessory / Separate Part Typeconnector
Complementary
- Minimum Insulating Resistance
- 1 GΩ
- Cable Connector Fixing
- screw-on
- Line Rated Current
- 4 A
- Net Weight
- 0.01 kg
[Ue] Rated Operational Voltage60 V AC || 75 V DC
Cable Gland TypeM9.5
Enclosure MaterialPlastic
Contact Resistance10000 µOhm
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
Ip Degree Of ProtectionIP67
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mercury FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
