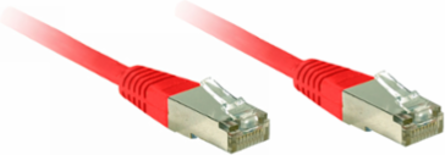

Schneider Electric VW3E5001R005 SERCOS III Cable 0.5m with 2 RJ45 Connectors, 0.04kg
- MPN: VW3E5001R005
- PPN: SCH-VW3E5001R005
CAD
$27.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Lexium 32 range, an offer of connection accessories for Lexium 32 servo drives and servo motors. This control cable features a SERCOS III interface. The length of this cable is 0.5m. It is furnished with RJ45 connector for electrical connection. It is used to connect servo motor to servo drive. It weighs 0.04kg. This product range is compatible with Lexium 52, Modicon TM5, Lexium 62 and PacDrive LMC motion controller. Lexium 32 is a servo drive range provides drive and motor combination that has exactly the right power, performance and functionality. The Lexium 32 range of servo drives includes four servo drive models with power ratings from 0.15kW to 11kW and the servo motor ranges BMH and BSH series.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Germany, France, United States |
|---|
Physical Attributes
| Cable Length | 0.5 m |
|---|
Important Information Attributes
| Range Of Product | Lexium 32S, Modicon LMC078, PacDrive 3 |
|---|---|
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0 kg CO2 eq., 0.0348073356 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.2 kg CO2 eq., 0.1723004216 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Traceability | No |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2005010EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1901 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Connector Type | RJ45/RJ45 |
| Product Or Component Type | SERCOS III cable |
| Software Version | EIME v5.8.1 |
| Total Lifecycle Carbon Footprint | 29 kg CO2 eq. |
| Database Version | 2016-11 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To transmit data and signals on a distance of three meters during 10 years and a 100% use rate to control, measure and regulate equipments. |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 59.7432 |
| Energy Model - Installation [A5] | Electricity mix; AC; < 1kV; EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity mix; AC; < 1kV; EU-27 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] | 332.25 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] | 584.6 |
| Carbon Footprint Of The Distribution Phase [A4] | 0.005031855, 0 kg CO2 eq. |
|---|---|
| Carbon Footprint Of The Installation Phase [A5] | 0.0002165289, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 29 kg CO2 eq., 29.2716666667 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Serviceability | No |
| Weee Scope | Out |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Returnability | No |
| Sustainable Packaging | No |
| Pep Code | ENVPEP2005010EN |
| Pep Verification Date | 2020-12-01 |
| Psr Version | PSR-0001-ed3-EN-2015 10 16 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Germany |
| Energy Model - Use [B6] | Electricity mix; AC; < 1kV; EU-27 |
| Accessory / Separate Part Category | connection accessories |
| Package Weight(Lbs) | 33.000 g |
| Warranty (In Months) | 18 |
| Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6] | 109.135 |
| Customs Code | 8544429090 |
Environment Attributes Main
| Product Compatibility | LXM 62 servo drive, LXM 52 servo driveLMC Eco controller, LMC Pro controller, bus coupler module, TM5CSLC.00FS |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2005010EN |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2020-12-01 |
| Psr Version | PSR-0001-ed3-EN-2015 10 16 |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 29.4840228077 |
| Environmental Disclosure | ENVPEP2005010EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2005010EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Range Of Product | Lexium 32S, Modicon LMC078, PacDrive 3 |
|---|
| Product Or Component Type | SERCOS III cable |
|---|
ETIM
| ETIM 8 | EC002584 |
|---|
| ETIM 9 | EC002584 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
