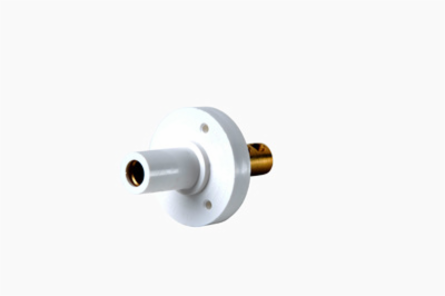

Pass & Seymour PSMFRW 150A 600V Series 15 Panel Mount with Nylon Housing and Brass Contacts

MPN: PSMFRW
UPC: 785007309119
PPN: P-S-PSMFRW
UNSPSC: 39121402

$70.84

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

150A 600V Series 15 Panel Mount with Nylon Housing and Brass Contacts

Features

Nylon housing provides outstanding impact and chemical resistance. Heavy-duty brass male and female contacts provide a superior and consistent means of conductivity.
Heavy-duty hex set screws (available on double set screw version only) allow greater termination torque.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico
Product Line	Pass & Seymour
Connection	Double Set Screw
NEMA Rating	NEMA 3R and 4 for indoor applications
Special Features	Nylon housing provides outstanding impact and chemical resistance. Heavy-duty brass male and female contacts provide a superior and consistent means of conductivity. Heavy-duty hex set screws (available on double set screw version only) allow greater termination torque.
Voltage	600.0 V
Warranty Type	1-Year
Type	Adapter
Features	Chemical Resistant
Operating Temperature	-40°-75°C

Color	White
Amperage	150.0 A
Standard	UL; cCSAus
Environmental Conditions	Operating Temperature: Maximum continuous +75°C, minimum -40°C without impact: Flammability UL94 V2: Enclosure: NEMA Type 3R and 4
Application Sector	Commercial; Industrial
Flanged	No
Indoor/Outdoor	Indoor
Terminal Accommodation	#8 AWG - #2 AWG
Operating Temperature Min	-40.0 °C
Operating Temperature Max	75.0 °C
