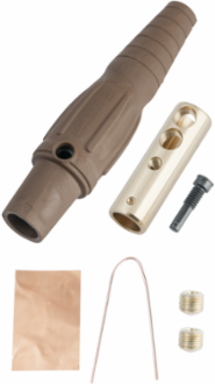

Pass & Seymour PS20FBBR Series 16 In-Line Connector 400A 600V Cable Size #2 - 2/0
Pass & Seymour PS20FBBR Series 16 In-Line Connector 400A 600V Cable Size #2 - 2/0
- MPN: PS20FBBR
- UPC: 785007422443
- PPN: P-S-PS20FBBR
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$70.61/ EA
Description
400A 600V, Cable Size #2 - 2/0, Female Cam-Type Plug, Green
Features
- Thermoplastic elastomer housing for outstanding impact and chemical resistance
- Exceptional seal for maintaining NEMA Type 3R and 4 integrity
- Non-conductive retaining screw helps to insure no contact with live parts, along with providing stability to the fully assembled product
- Heavy-duty brass male and female contacts provide a superior and consistent means of conductivity
- Heavy-duty hex set screws allow greater termination torque
- Copper wire provides quality strain relief
- Copper shim bundles wire strands to reduce ''splaying.''
Specifications
Specifications
- Country of Origin
- Mexico
- Product Line
- Pass & Seymour
- Flanged
- No
- Type
- Connector
- Voltage
- 600.0 V
- Warranty Type
- 1-Year
- Terminal Accommodation
- 2/0
- Number of Poles
- Single Pole
- Application Sector
- Industrial
- Special Features
- Thermoplastic elastomer housing for outstanding impact and chemical resistance, as well as an exceptional seal for maintaining NEMA Type 3R and 4 integrity. Non-conductive retaining screw helps to insure no contact with live parts, along with providing stability to the fully assembled product. Heavy-duty brass male and female contacts provide a superior and consistent means of conductivity. Heavy-duty hex set screws allow greater termination torque. Copper wire provides quality strain relief. Copper shim bundles wire strands to reduce "splaying."
ColorBrown
Environmental ConditionsOperating Temperature: Maximum continuous +75°C, minimum -40°C without impact: Flammability UL94 V2: Enclosure: NEMA Type 3R and 4
StandardUL
StandardcCSAus
Amperage400.0 A
Indoor/OutdoorIndoor
FeaturesChemical Resistant
Application SectorCommercial
NEMA RatingNEMA 3R and 4 for indoor applications
