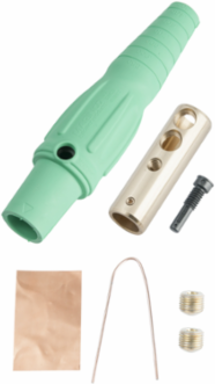

Pass & Seymour PS40FBG Series 16 In-Line Connector, 400A 600V, 2/0 - 4/0 Cable Size, 6.8 Inch Length
- MPN: PS40FBG
- UPC: 785007308198
- PPN: P-S-PS40FBG
CAD
$74.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Series 16 In-Line Connector, 400A 600V, 2/0 - 4/0 Cable Size, 6.8 Inch Length
Features
- Thermoplastic elastomer housing for outstanding impact and chemical resistance
- Exceptional seal for maintaining NEMA Type 3R and 4 integrity
- Non-conductive retaining screw helps to insure no contact with live parts, along with providing stability to the fully assembled product
- Heavy-duty brass male and female contacts provide a superior and consistent means of conductivity
- Heavy-duty hex set screws allow greater termination torque
- Copper wire provides quality strain relief
- Copper shim bundles wire strands to reduce ''splaying.''
Documentation & Downloads
Specifications
Key Specifications
- Length
- 6.8 in
- Color
- Green
- Environmental Conditions
- Operating Temperature: Maximum continuous +75°C, minimum -40°C without impact: Flammability UL94 V2: Enclosure: NEMA Type 3R and 4
- Standard
- UL
- Standard
- cCSAus
- Amperage
- 400.0 A
- Indoor/Outdoor
- Indoor
- Number of Poles
- Single Pole
- Application Sector
- Industrial
- NEMA Rating
- NEMA 3R and 4 for indoor applications
Country of OriginMexico
Product LinePass & Seymour
FlangedNo
TypeConnector
Voltage600.0 V
Warranty Type1-Year
FeaturesChemical Resistant
Application SectorCommercial
Terminal Accommodation2/0 - 4/0
Special FeaturesThermoplastic elastomer housing for outstanding impact and chemical resistance, as well as an exceptional seal for maintaining NEMA Type 3R and 4 integrity. Non-conductive retaining screw helps to insure no contact with live parts, along with providing stability to the fully assembled product. Heavy-duty brass male and female contacts provide a superior and consistent means of conductivity. Heavy-duty hex set screws allow greater termination torque. Copper wire provides quality strain relief. Copper shim bundles wire strands to reduce "splaying."
