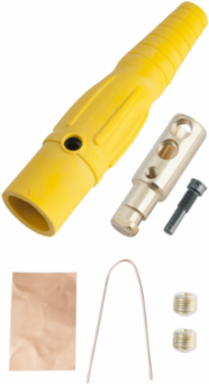

Pass & Seymour PS40MBY Series 16 In-Line Connector, 400A 600V, 6-7/8 Inch, Yellow
Pass & Seymour PS40MBY Series 16 In-Line Connector, 400A 600V, 6-7/8 Inch, Yellow
- MPN: PS40MBY
- UPC: 785007422603
- PPN: P-S-PS40MBY
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$70.61/ EA
Description
400A 600V MALE PLUG LOW 2/0-4/0
Features
- Thermoplastic elastomer housing for outstanding impact and chemical resistance, as well as an exceptional seal for maintaining NEMA Type 3R and 4 integrity.
- Non-conductive retaining screw helps to insure no contact with live parts, along with providing stability to the fully assembled product.
- Heavy-duty brass male and female contacts provide a superior and consistent means of conductivity.
- Heavy-duty hex set screws allow greater termination torque.
Specifications
Specifications
- Length
- 6.875 in
- Country of Origin
- Mexico
- Standard
- UL
- Standard
- cCSAus
- Amperage
- 400.0 A
- Indoor/Outdoor
- Indoor
- Number of Poles
- Single Pole
- Application Sector
- Industrial
- NEMA Rating
- NEMA 3R and 4 for indoor applications
- Color
- Yellow
Environmental ConditionsOperating Temperature: Maximum continuous +75°C, minimum -40°C without impact: Flammability UL94 V2: Enclosure: NEMA Type 3R and 4
FlangedNo
TypeConnector
Voltage600.0 V
Warranty Type1-Year
FeaturesChemical Resistant
Application SectorCommercial
Terminal Accommodation2/0 - 4/0
Special FeaturesThermoplastic elastomer housing for outstanding impact and chemical resistance, as well as an exceptional seal for maintaining NEMA Type 3R and 4 integrity. Non-conductive retaining screw helps to insure no contact with live parts, along with providing stability to the fully assembled product. Heavy-duty brass male and female contacts provide a superior and consistent means of conductivity. Heavy-duty hex set screws allow greater termination torque. Copper wire provides quality strain relief. Copper shim bundles wire strands to reduce "splaying."
Product LinePass & Seymour
