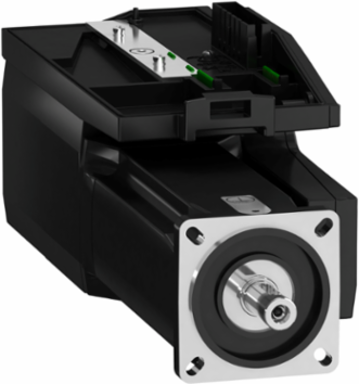

Schneider Electric BMI0702T37A Servo Motor IP65 Keyed 1-Phase 700W 4000 RPM 11 mm Shaft Diameter
- MPN: BMI0702T37A
- PPN: SCH-BMI0702T37A
CAD
$2055.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This servo motor from Schneider Electric combines robust performance with reliable operation, making it an excellent choice for various motion control applications. With a power rating of 700W and a maximum speed of 4000 RPM, it efficiently meets the demands of automation projects. The IP65 rating ensures protection against dust and water, enhancing its durability in challenging environments. Designed with a keyed 11 mm shaft diameter, this motor promises seamless integration into your systems, making it an indispensable component for precise control in automation and control setups.
Documentation & Downloads
Specifications
Additional
- Power
- 700 W 230 V single phase || 400 W 115 V single phase
- Nominal Speed
- 4000 rpm 230 V single phase || 1700 rpm 115 V single phase
- Peak Stall Torque
- 6.6 N.m 115 V single phase || 6.6 N.m 230 V single phase
- Shaft Diameter
- 11 mm
- Supply Voltage Limits
- 100-240 V
- Supply Frequency
- 50/60 Hz -5...5 %
- EMC Filter
- integrated
- Output Current 3s Peak
- 10.5 A 230 V 1 s
- Maximum Current Irms
- 17.7 A 115 V and 230 V single phase
- Maximum Axial Force
- 0.2 x Fr (radial force)
- Length
- 268 mm (10.55 in)
- Key Width
- 4 mm (0.16 in)
- Mounting Support
- international standard flange
- Mounting Holes Diameter
- 5.5 mm (0.22 in)
- Distance Shaft Shoulder-Flange
- 2.5 mm (0.10 in)
- Feedback Type
- absolute multiturn SinCos Hiperface
- Number Of Motor Poles
- 10
- Stator Resistance
- 2.7 Ohm 20 °C
- Stator Electrical Time Constant
- 2.89 ms 20 °C
- Electrical Connection
- printed circuit board connector
- Back Emf Constant
- 42.1 V/krpm 20 °C
- Warranty
- 18 months
- Country of Origin
- DE
Maximum Speed8000 rpm
Continuous Stall Torque2.48 N.m 115...230 V single phase
Nominal Torque2.2 N.m 115 V single phase || 1.7 N.m 230 V single phase
Phasesingle phase
Rated Supply Voltage115...230 V -15...10 %
Network Frequency Limits47.5-63 Hz
Continuous Output Current2.6 A 8 kHz
Continuous Stall Current2.6 A
Maximum Radial Force710 N 1000 rpm || 560 N 2000 rpm || 490 N 3000 rpm || 450 N 4000 rpm || 410 N 5000 rpm || 390 N 6000 rpm
Cooling Typenatural convection
Shaft Length23 mm (0.91 in)
Motor Flange Size70 mm (2.76 in)
Number Of Mounting Holes4
Circle Diameter Of The Mounting Holes75-82 mm (2.95-3.23 in)
Shaft Endkeyed
Speed Feedback Resolution32768 points/turn x 4096 turns
Rotor Inertia1.13 kg.cm²
Stator Inductance7.8 mH 20 °C
Number Of Motor Stacks2
Torque Constant0.63 N.m/A 20 °C
IP Degree of ProtectionIP65
ComplianceLead free, Mercury free, RoHS exemption Yes, REACh compliant, PVC free, EU RoHS Directive Pro-active compliance
Sustainable Offer StatusGreen Premium product
