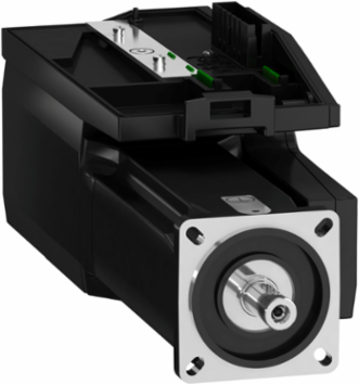

Schneider Electric BMI0702P07A Servo Motor 3-Phase IP54 Multiturn 32768 p/t x 4096 t, 400 W
- MPN: BMI0702P07A
- PPN: SCH-BMI0702P07A
CAD
$2174.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric BMI0702P07A Servo Motor stands out in the realm of automation and control with its robust multiturn design, featuring an impressive resolution of 32,768 pulses per turn and 4,096 turns. Engineered for precision and reliability, this 3-phase motor operates efficiently with a power rating of 400 W, making it suitable for a variety of motion control applications. With an IP54 rating, it is designed to withstand dust and splashes, ensuring durability even in demanding environments. This servo motor is an excellent choice for those seeking to enhance their automation processes with dependable and high-performance motion solutions.
Documentation & Downloads
Specifications
Additional
- Nominal Output Power
- 400 W 208 V three phase || 800 W 400 V three phase || 900 W 480 V three phase
- Network Number Of Phases
- Three phase
- Continuous Output Current
- 2 A 8 kHz
- Maximum Mechanical Speed
- 8000 rpm
- Nominal Torque
- 2.4 N.m 208 V three phase || 2.2 N.m 400 V three phase || 2 N.m 480 V three phase
- Continuous Stall Torque
- 2.48 N.m 208...480 V three phase
- Shaft Length
- 23 mm (0.91 in)
- Length
- 268 mm (10.55 in)
- Mounting Holes Diameter
- 5.5 mm (0.22 in)
- Centring Collar Diameter
- 60 mm
- Distance Shaft Shoulder-Flange
- 2.5 mm
- Shaft End
- Untapped
- Stator Inductance
- 25.75 mH 20 °C
- Stator Electrical Time Constant
- 2.9 ms 20 °C
- Rotor Inertia
- 1.13 kg.cm²
- Number Of Motor Poles
- 10
- Feedback Type
- Absolute multiturn SinCos Hiperface
- Cooling Type
- Natural convection
- Pvc Free
- Yes
- Sustainable Offer Status
- Green Premium product
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1312017EN
- Country of Origin
- Germany
Supply Voltage Limits208-480 V -15...10 %
Network Frequency Limits47.5-63 Hz
Output Current 3S Peak6 A 400 V 3 s
Nominal Speed1800 rpm 208 V three phase || 3600 rpm 400 V three phase || 4400 rpm 480 V three phase
Peak Stall Torque6.8 N.m 208 V three phase || 6.8 N.m 400 V three phase || 6.8 N.m 480 V three phase
Shaft Diameter11 mm (0.43 in)
Motor Flange Size70 mm (2.76 in)
Number Of Mounting Holes4
Circle Diameter Of The Mounting Holes75-82 mm (2.95-3.23 in)
Centring Collar Depth2.5 mm
Electrical ConnectionPrinted circuit board connector
Second ShaftWithout second shaft end
Stator Resistance8.89 Ohm 20 °C
Back Emf Constant77.18 V/krpm 20 °C
Torque Constant1.15 N.m/A 20 °C
Number Of Motor Stacks2
Speed Feedback Resolution32768 points/turn x 4096 turns
Ip Degree Of ProtectionShaft IP54 || Housing IP65
Mercury FreeYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
China Rohs RegulationX
Circularity ProfileENVEOLI1312017EN
