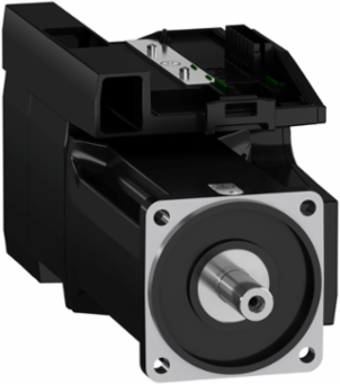

Schneider Electric BMI1002P07A Servo Motor 3-Phase 6 N.m Torque, IP54 Protection, 273 mm Length
- MPN: BMI1002P07A
- PPN: SCH-BMI1002P07A
CAD
$2866.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This Servo Motor from Schneider Electric is engineered for high-performance motion control applications, offering a robust torque of 6 N.m to effectively meet demanding automation needs. With its 3-phase design, it delivers efficient and reliable operation, ensuring precision in various industrial tasks. The motor is housed in a durable casing with IP54 protection, making it suitable for environments where dust and water exposure may occur. Compactly designed with a length of 273 mm, this servo motor is an excellent choice for professionals seeking efficient solutions in automation and control systems.
Documentation & Downloads
Specifications
Additional
- Continuous Stall Torque
- 6 N.m 208...480 V three phase
- Peak Stall Torque
- 14 N.m 208 V three phase || 14 N.m 400 V three phase || 14 N.m 480 V three phase
- Continuous Output Current
- 4 A 8 kHz
- Maximum Mechanical Speed
- 6000 rpm
- Rated Supply Voltage
- 208-480 V -15...10 %
- Torque Constant
- 1.28 N.m/A 20 0C
- Network Number Of Phases
- three phase
- Shaft Diameter
- 19 mm (0.75 in)
- Motor Flange Size
- 100 mm
- Mounting Holes Diameter
- 9 mm
- Circle Diameter Of The Mounting Holes
- 115-115 mm
- Centring Collar Depth
- 3.5 mm
- Shaft End
- untapped
- Number Of Motor Stacks
- 2
- Rotor Inertia
- 6.28 kg.cmb2
- Stator Inductance
- 9.79 mH 20 b0C
- Feedback Type
- absolute multiturn SinCos Hiperface
- Electrical Connection
- printed circuit board connector
- China Rohs Regulation
- X
- Pvc Free
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Warranty
- 18 months
Nominal Torque5.1 N.m 400 V three phase || 5.4 N.m 208 V three phase || 4.1 N.m 480 V three phase
Nominal Output Power1000 W 208 V three phase || 1900 W 400 V three phase || 1900 W 480 V three phase
Output Current 3s Peak12 A 400 V 3 s
Maximum Current Irms17.5 A 208 V three phase || 17.5 A 400 V three phase || 17.5 A 480 V three phase
Supply Frequency50/60 Hz -5...5 %
Back Emf Constant84.52 V/krpm 20 0C
Length273 mm
Shaft Length40 mm (1.57 in)
Centring Collar Diameter95 mm
Number Of Mounting Holes4
Distance Shaft Shoulder-Flange3.5 mm
Mounting Supportinternational standard flange
Number Of Motor Poles10
Type Of Coolingnatural convection
Stator Resistance2.347 Ohm 20 b0C
Stator Electrical Time Constant4.17 ms 20 b0C
Speed Feedback Resolution32768 points/turn x 4096 turns
ComplianceGreen Premium, RoHS, Mercury free, PVC free
RoHS Exemption InformationYes
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
