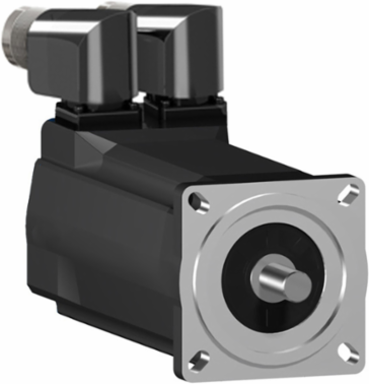

Schneider Electric SH30702P11A2100 Servo Motor 2.04 Nm, 8000 RPM, IP65, 3-Phase
- MPN: SH30702P11A2100
- PPN: SCH-SH30702P11A2100
CAD
$3200.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Engineered for high-performance applications, this 2.04 Nm servo motor from Schneider Electric is ideal for a wide range of automation and control tasks. Operating at an impressive speed of 8000 RPM, it ensures precise motion control in dynamic environments. With an IP65 rating, this robust three-phase motor is built to withstand dust and moisture, making it suitable for demanding industrial settings. Its advanced design promises reliability and efficiency, making it a valuable component for any motion control system.
Documentation & Downloads
Specifications
Additional
- Voltage
- 115...480 V
- Maximum Current Irms
- 11.8 A
- Continuous Power
- 1130 W
- Peak Stall Torque
- 7.6 N.m 115...480 V three phase
- Nominal Torque
- 2.15 N.m (115 V single phase), 2.1 N.m (230 V single phase), 1.8 N.m (400 V three phase), 1.8 N.m (480 V three phase)
- Torque Constant
- 0.7 N.m/A at 120 °C
- Number of Motor Poles
- 3
- Stator Resistance
- 4.2 Ohm
- Maximum Radial Force
- 710 N (1000 rpm), 560 N (2000 rpm), 490 N (3000 rpm), 450 N (4000 rpm), 410 N (5000 rpm), 390 N (6000 rpm)
- Cooling Type
- Natural convection
- Shaft Diameter
- 11 mm
- Key Width
- 4 mm
- Mounting Holes Diameter
- 5.5 mm
- Circle Diameter of Mounting Holes
- 82 mm
- Centring Collar Depth
- 2.5 mm
- Mounting Support
- International standard flange
- IP Rating
- IP65 motor and shaft bushing (EN/IEC 60034-5)
- Compliance
- REACH, RoHS, Mercury Free, PVC Free, EU RoHS Exemption
Maximum Speed8000 rpm
Continuous Stall Current2.9 A
Nominal Output Power340 W (115 V single phase), 660 W (230 V single phase), 1190 W (400 V three phase), 1360 W (480 V three phase)
Continuous Stall Torque2.04 N.m 115...480 V three phase
Nominal Speed1500 rpm (115 V single phase), 3000 rpm (230 V single phase), 6000 rpm (400 V three phase), 7200 rpm (480 V three phase)
Back EMF Constant48 V/krpm at 20 °C
Rotor Inertia0.41 kg.cm²
Stator Inductance29.65 mH
Maximum Axial Force80 N
Length187 mm
Shaft Length23 mm
Motor Flange Size70 mm
Number of Mounting Holes4
Centring Collar Diameter60 mm
Electrical ConnectionStraight connector
Shaft EndParallel key
PhaseThree phase
Country of OriginGermany
